Description

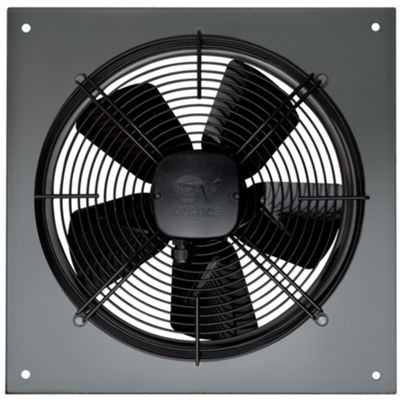

Three-phase single-speed axial fan, ideal for wall installation in environments such as offices, gyms, restaurants, discos, dry cleaners and warehouses, the panel is made of phosphated steel sheet and painted with epoxy powder in grey with a hammered effect, guaranteeing resistance to atmospheric agents.
The nozzle, integrated into the panel, is calibrated to optimise the air flow and facilitate connection to the delivery duct, while the protection grille, compliant with the UNI ISO 13857 standard, also acts as an engine support and is made of electro-welded steel rings painted with black epoxy paint.
Easy removal makes maintenance and cleaning of the fan easy. The three-phase external rotor AC motor is equipped with thermal overload protection and shaft mounted on ball bearing supports, in class F.
The impeller is dynamically balanced according to the UNI ISO 1940 standard, with 5 blades pressed in electro-galvanized steel sheet and painted with black polyester powder.
The fan can be controlled in speed using a Vortice regulator.
Datasheet
• Nominal duct diameter 350 mm
• IP54 protection rating
• Isolation I
• Number of phases 1
• Number of poles 4
• Max absorbed power 170 W
• Voltage 220-240 V
• Max flow rate 2,500 m³/h
• Sound power Lw 70.0 dB(A)
• Sound pressure Lp at 1 m 59.0 dB(A)
• Sound pressure Lp at 3 m 49.5 dB(A)
• Rotation speed 1400 RPM
