Description

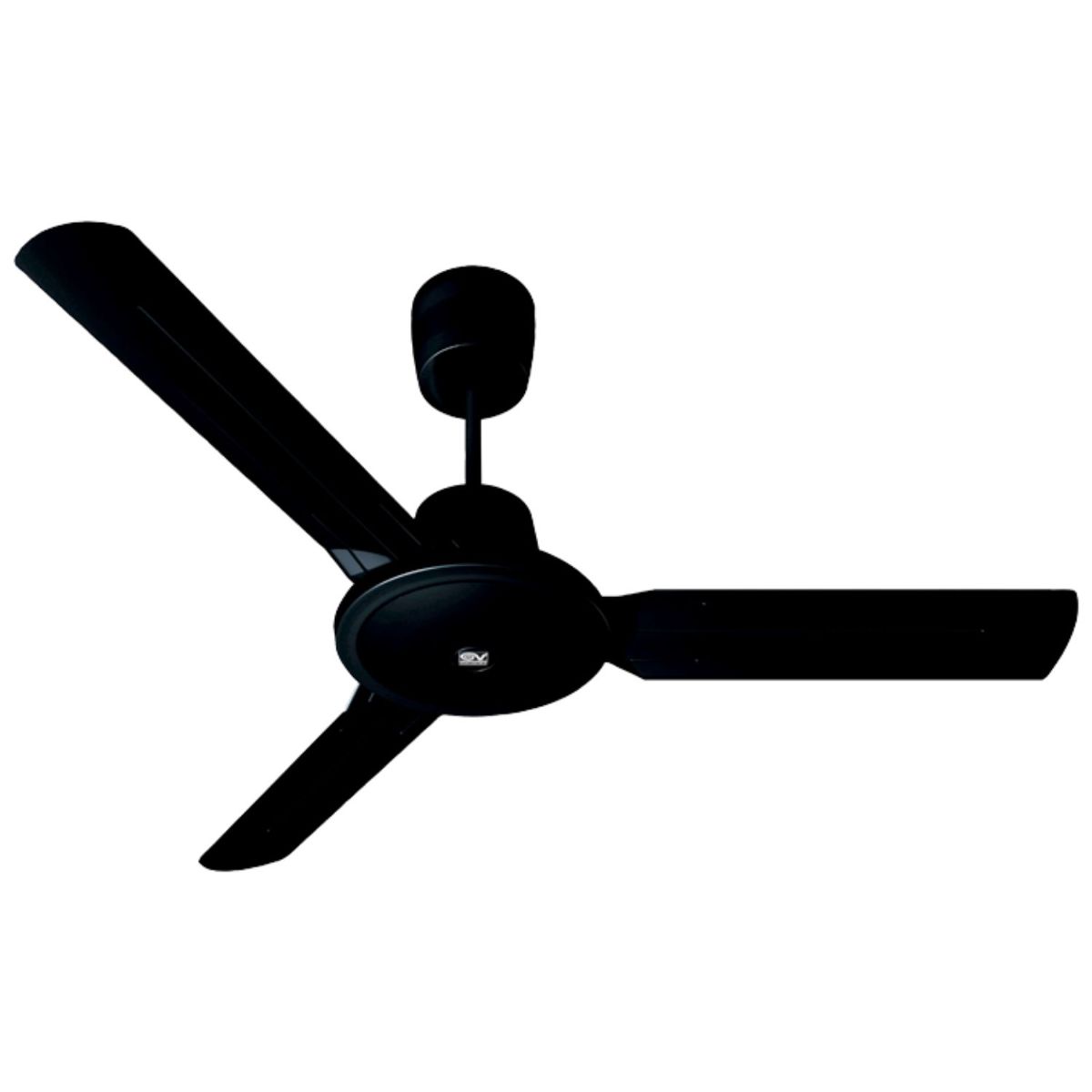

Ceiling fan designed to ensure effective ventilation in domestic and commercial environments, equipped with three blades in electro-galvanized steel sheet painted with black scratch-resistant polyester paint, offers a maximum flow rate of 16,586 m³/h.
The single-phase external rotor motor, mounted on ball bearings and equipped with a starting capacitor, allows for reversible rotation, allowing use in both summer and winter.
The electrical connection covers are made of shock-proof and UV-resistant thermoplastic resin, guaranteeing durability and safety.
The white painted steel support rod has a length of 375 mm, ensuring easy installation.
Datasheet
• Type Reversible ceiling fan
• Blade diameter 148.8 cm
• Maximum air flow 16,586 m³/h
• Rotation speed 197 rpm
• Power consumption 70 W
• Sound power level 52.6 dB(A)
• Single-phase external rotor motor with shaft mounted on ball bearings and starting capacitor
• Rotation reversibility function
• Blade material in electro-galvanized steel sheet painted with scratch-resistant polyester paint
• Black color
• Electrical connection covers made of shock-proof and UV-proof thermoplastic resin
• Support rod in white painted steel, length 375 mm
