Description

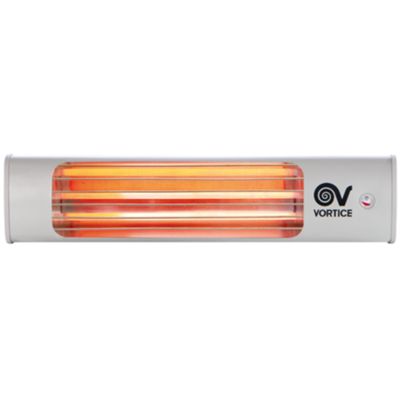

Infrared lamp designed for the rapid and efficient heating of internal and external environments, such as bathrooms, verandas, terraces and gazebos, equipped with three lamps of 600 W each, offers the possibility of selecting between three power levels (600/1200/1800 W) via a pull switch.
The structure is composed of a front cover in stainless steel, rear shell in grey painted sheet metal and side panels in grey nylon.
The lamp can be installed on the wall using the supplied bracket and can be tilted by 30° to direct the infrared rays towards the point to be heated. The IPX4 protection rating also makes it suitable for humid environments.
Datasheet
• Power supply voltage 230 V
• Maximum current consumption 7.8 A
• Maximum absorbed power 1800 W
• Selectable power levels 600 W / 1200 W / 1800 W
• Heating type Infrared
• Number of lamps 3
• Unit power of lamps 600 W
• Front cover material stainless steel
• Rear shell material: grey painted sheet metal
• Side panels material: grey nylon
• Wall installation with supplied bracket
• Adjustable tilt up to 30°
• Pull switch for on/off and power selection
• IPX4 protection rating
• Insulation class I
• Ignition time approximately 30 seconds
• Grey color
