Description

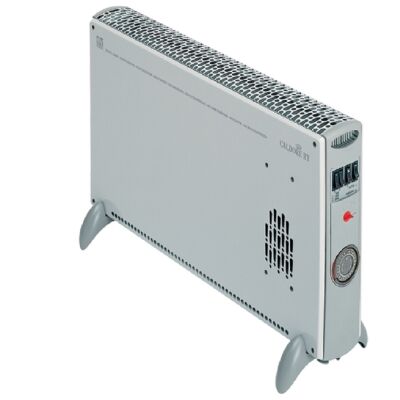

Versatile electric convector heater, designed to provide efficient heating in domestic and professional environments, equipped with a 3-speed shaded pole motor, with shaft mounted on self-centering and self-lubricating bushings, it is combined with a centrifugal fan in thermoplastic resin to ensure uniform heat distribution, the resistance is protected by a limiter with a manual reset PTC sensor, ensuring safety and reliability.
The device offers three selectable power levels (800/1200/2000 W) via illuminated switches, and includes a manually adjustable room thermostat with anti-frost function, which automatically activates the heating when the temperature drops below 5°C. The integrated daily programmer allows you to set the on and off in minimum intervals of 15 minutes, offering precise control of thermal comfort.
The structure is composed of front and rear panels, upper and lower grilles in steel painted with grey scratch-resistant paint, and side panels in grey V0 self-extinguishing plastic resin.
The convector heater can be installed on the floor or on the wall (using the optional kit code 22980), and has an integrated power cable reel and four anti-tip feet with non-slip rubber pads for greater stability.
Datasheet
• Portable electric convector heater
• Thermal power 800/1200/2000 W
• Power supply voltage 220-240 V
• 3-speed shaded pole motor with shaft mounted on self-centering and self-lubricating bushings
• Centrifugal fan in thermoplastic resin
• Resistance with manual reset PTC limiter
• Illuminated switches for on/off and power selection
• Manually adjustable room thermostat with anti-freeze function (activation below 5°C)
• Daily programmer with minimum intervals of 15 minutes
• Panels and grilles in scratch-resistant grey painted steel
• Side panels in self-extinguishing V0 grey plastic resin
• Integrated power cord reel
• Four anti-tip feet with non-slip rubber pads
• Floor or wall installation (optional kit code 22980)
• Dimensions (W x H x D) 685 x 415 x 100 mm
• Grey color
