Description

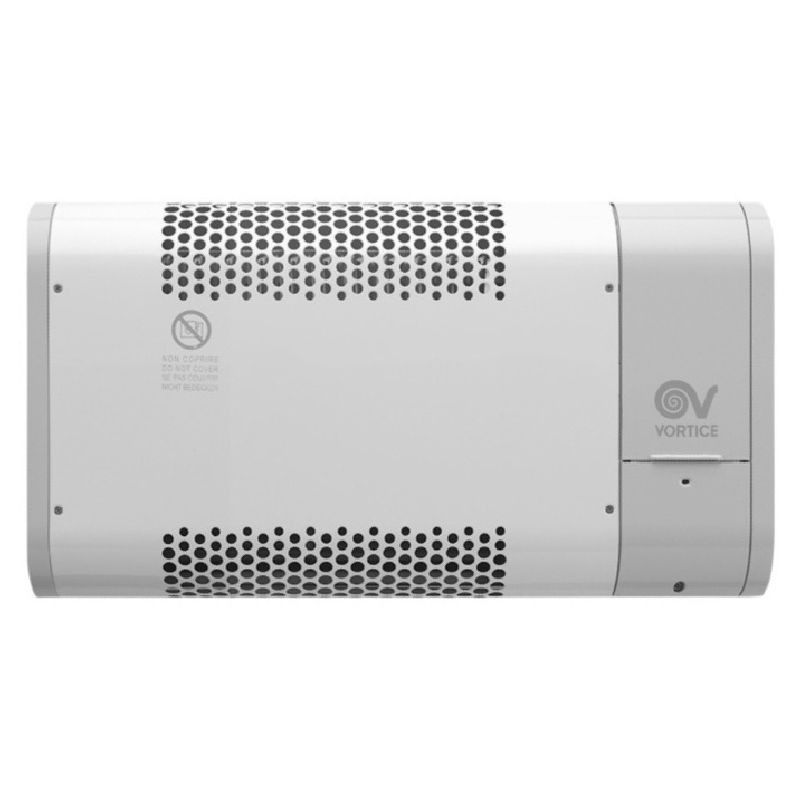

Compact device designed for wall installation, ideal for heating small rooms, its structure is composed of front and rear panels, in addition to upper and lower grilles, made of painted steel with a gray scratch-resistant finish.
The side panels and the control group are made of self-extinguishing V0 plastic resin in grey, guaranteeing resistance and safety.
The device is equipped with a tangential fan motor and an armored resistor with aluminum heat sink, offering two selectable power levels, 300 W and 600 W.
For safety, there is a manually resettable thermal protector, the illuminated switches allow for switching on and off, as well as selecting the desired power.
The manually adjustable room thermostat includes an anti-freeze function that automatically activates the fan heater when the room temperature drops below 5°C. In addition, the device can be connected to an external chronothermostat for more precise temperature management.
Datasheet
• Wall mounted fan heater
• Supply voltage 230 V
• Max absorbed power 600 W
• IPX4 protection rating
• Insulation class I
• Dimensions (H x W x D) 433 x 258 x 109 mm
• Panel and grid material: Scratch-resistant grey painted steel
• Side panels and controls material Self-extinguishing V0 grey plastic resin
• Tangential fan motor
• Armored resistor with aluminum heatsink
• Selectable power 300/600 W
• Manual reset thermal protector
• Illuminated switches for on/off and power selection
• Manually adjustable room thermostat with anti-freeze function
• Connectable to external chronothermostat
