Description

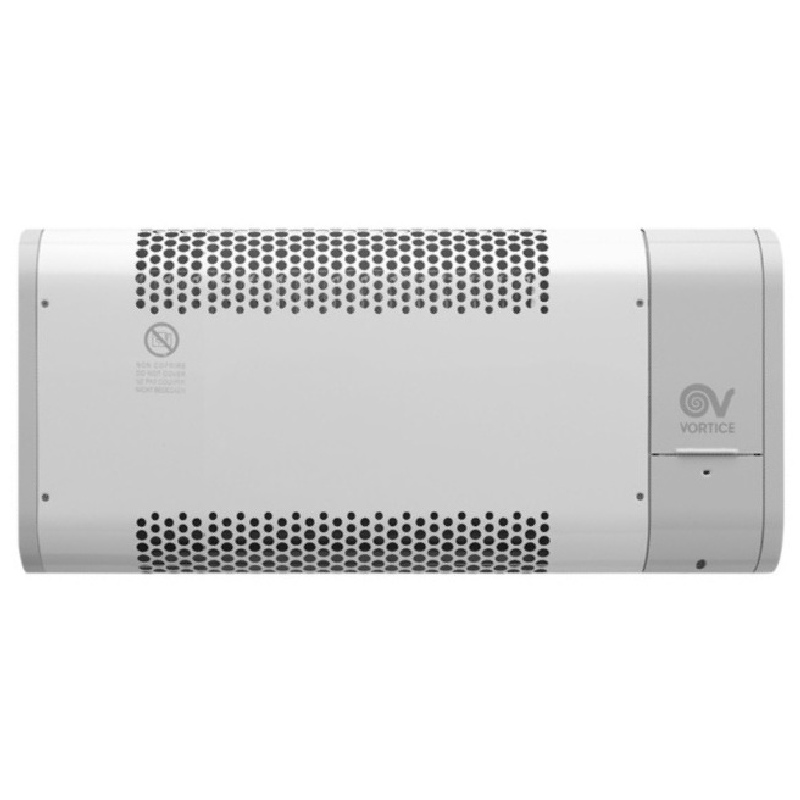

The Vortice MICRORAPID T 1000-V0 is a fixed wall-mounted fan heater, designed to provide efficient and safe heating in residential environments, including bathrooms.
The structure is made with front and rear panels, upper and lower grilles in steel painted with grey scratch-resistant paint, the side panels and the control group are in grey V0 self-extinguishing plastic resin.
The tangential fan motor ensures uniform heat distribution, the armoured resistance with aluminium heat sink offers two power levels, 500 W and 1000 W.
The device is equipped with a manually resettable thermal protector and illuminated switches for on/off and for selecting the electrical power.
The manually adjustable room thermostat with anti-freeze function ensures that the fan heater switches on automatically when the detected room temperature drops below 5°C.
The adjustable daily/weekly digital timer allows programming of the on and off times. In addition, the device can be connected to an external chronothermostat.
Datasheet
• Wall mounted fan heater
• Max absorbed power 1000 W
• 2 power levels (500W / 1000W)
• Power supply voltage 230 V
• Max absorbed current 4.3 A
• Manually adjustable room thermostat with anti-freeze function
• Adjustable daily/weekly digital timer
• Connectable to external chronothermostat
• Tangential fan motor
• Armored resistor with aluminum heat sink
• Manual reset thermal protector
• Illuminated switches for on/off and power selection
• Panels and grids material Steel painted with grey scratch-resistant paint
• Side panels and controls material Self-extinguishing V0 plastic resin, grey colour
• IPX4 protection rating
• Class I insulation
• Dimensions (W x H x D) 503 x 258 x 109 mm
• Grey color
