Description

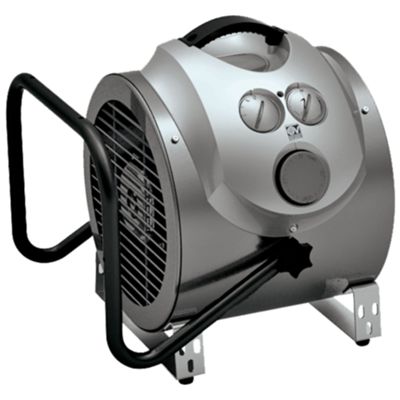

High-performance portable electric fan heater, ideal for industrial environments, construction sites, warehouses and laboratories, equipped with a maximum power of 5000 W and 400 V three-phase power supply, it is designed to ensure rapid and efficient heating in medium and large spaces.
The structure is made of painted steel, providing strength and impact resistance. The support feet in folded sheet steel with anti-vibration supports ensure stability during operation, the control panel, positioned on the top of the casing, is molded in self-extinguishing thermoplastic resin and protected from dust and water, making it suitable for use in harsh conditions.
The device is equipped with a rotary power selector with four positions: off, half power, full power and fan only. In addition, it has a mechanical timer with a maximum duration of 180 minutes, which allows for delayed shutdown, to ensure safety during use, there is an automatic reset safety device, functioning as a thermal protector mounted on the resistance.
The power cable is 1.8 meters long and comes with a 5-pin industrial plug (3-pin + N + T), compliant with standards for three-phase use. The compact dimensions (250 x 300.5 x 340 mm) and low weight (5.4 kg) make it easy to transport and install the device.
Datasheet
• Portable three-phase professional fan heater
• Maximum thermal power 5 kW
• Current consumption 7.2 A
• Mechanical timer up to 180 minutes
• Power selector off, half power, full power, ventilation only
• Self-resetting thermal protector safety device
• 1.8 m power cable with 5-pin industrial plug (3P + N + T)
• Painted steel structure
• Support feet made of folded sheet steel with anti-vibration supports
• Self-extinguishing thermoplastic resin control panel, protected from dust and water
• Dimensions (A x B x C) 250 x 300.5 x 340 mm
• Grey color
• Use in industrial environments, construction sites, warehouses, laboratories
