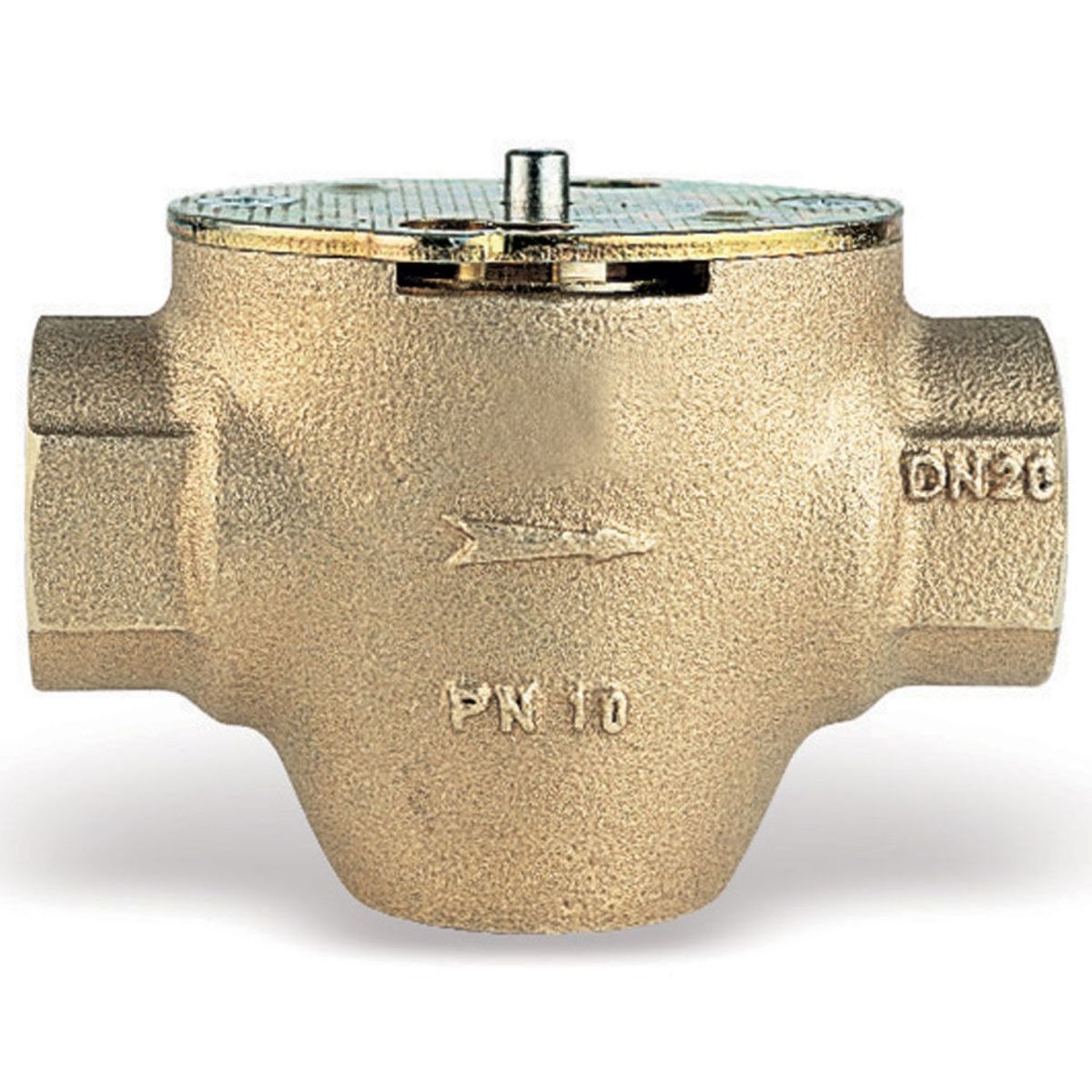

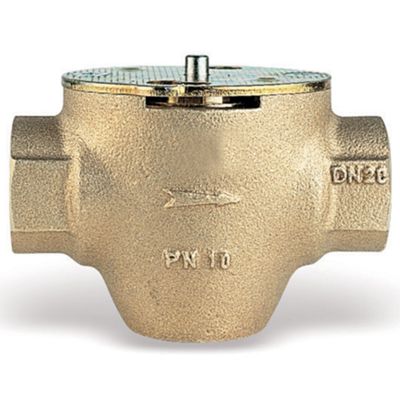

Watt 571T1 - zone valve 571T 2V 1 F s/actuator

Watt 571T1 - zone valve 571T 2V 1 F s/actuator

SKU: WTT571T1
Barcode: 8016466038206
Brand: Watts
Bronze two-way zone valve, normally closed (NC) ON/OFF operation with an electrothermal actuator (580T Series)
€90.42pcs
⏰ Order now and receive it: between and
Based on the shipping address, VAT may change during the purchase process. For more information, click here.

Description

Zone valves are components that automatically regulate the flow of water in the system to improve environmental comfort and energy efficiency.

It is particularly suitable when precise temperature control is required in multiple zones, and thanks to its ability to intercept and manage the system's fluid flow, it allows us to maintain the ideal temperature in the different zones, avoiding energy waste and improving overall efficiency.

NOTE: The 580T Series engine model must be added

Datasheet

Materials

• Body and seat: Bronze BZN LG2

• Stem: Brass with hardening chemical nickel plating

• Control rod seal: double EPDM O-Ring

• Brass Shutter

Performance

• Maximum operating pressure 10 bar

• Maximum differential pressure (when coupled to Series 580T actuator) 1.5 bar

• Maximum operating pressure: 10 bar

• Operating temperature 4÷100°C

• Shutter travel 4 mm

Properties

Cerifications:
C E
