Description

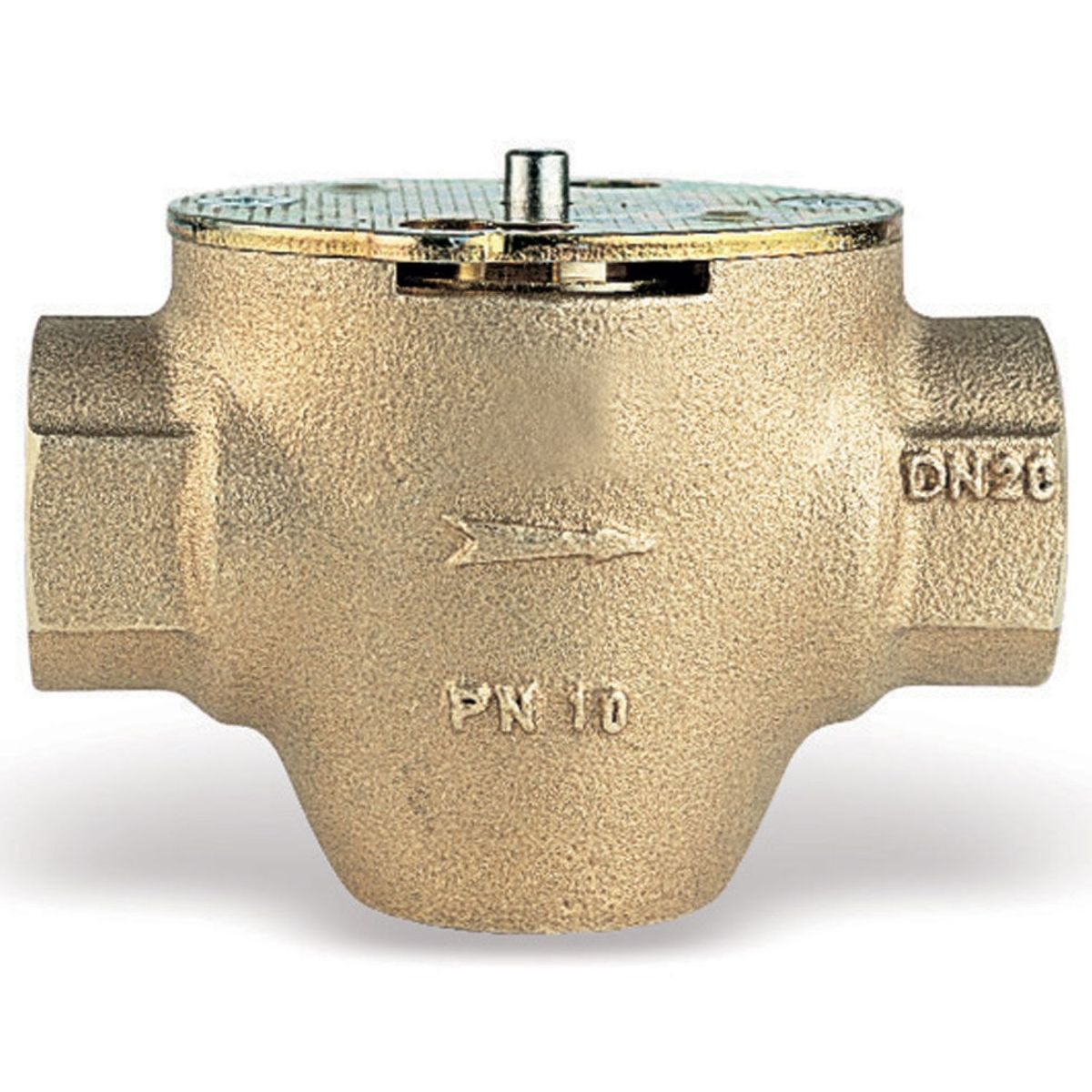

Zone valves are components that automatically regulate the flow of water in the system to improve environmental comfort and energy efficiency.
It is particularly suitable when precise temperature control is required in multiple zones, and thanks to its ability to intercept and manage the system's fluid flow, it allows us to maintain the ideal temperature in the different zones, avoiding energy waste and improving overall efficiency.
NOTE: The 580T Series engine model must be added
Datasheet
Materials
• Body and seat: Bronze BZN LG2
• Stem: Brass with hardening chemical nickel plating
• Control rod seal: double EPDM O-Ring
• Brass Shutter
Performance
• Maximum operating pressure 10 bar
• Maximum differential pressure (when coupled to Series 580T actuator) 1.5 bar
• Maximum operating pressure: 10 bar
• Operating temperature 4÷100°C
• Shutter travel 4 mm
