Description

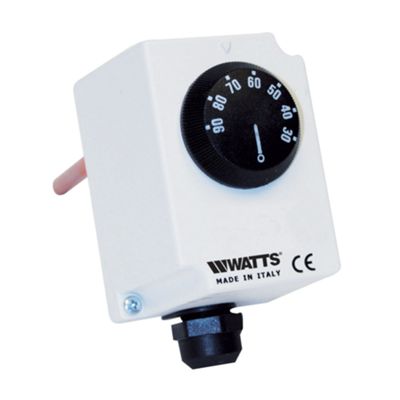

TRE TU thermostat for automatic control and safety Approved for is an essential device for thermal power plants.
The operation is based on the principle of liquid expansion, as the temperature detected by the sensitive element immersed in the sheath increases (it is crucial to install the copper sheath on the delivery pipe no more than 0.5 meters from the generator outlet, ensuring that it is completely immersed in the heat transfer fluid), the liquid inside it expands, causing the change in the switching contact. This contact can be used to start or exclude vital organs such as pumps and burners. This model stands out for its automatic reset.
wells not included
Datasheet
• Sensitive bulb with 1/2”M sheath, 100 mm long
• Resin case with external adjustment knob
• Degree of protection IP40. Tolerance: ±3°C
• Contact rating 16(5)A 250V. 400V 10(1)A
• Compliant with ENEC 03 Mark INAIL approved
• Complies with LVD Directive 2014/35/EU
