Description

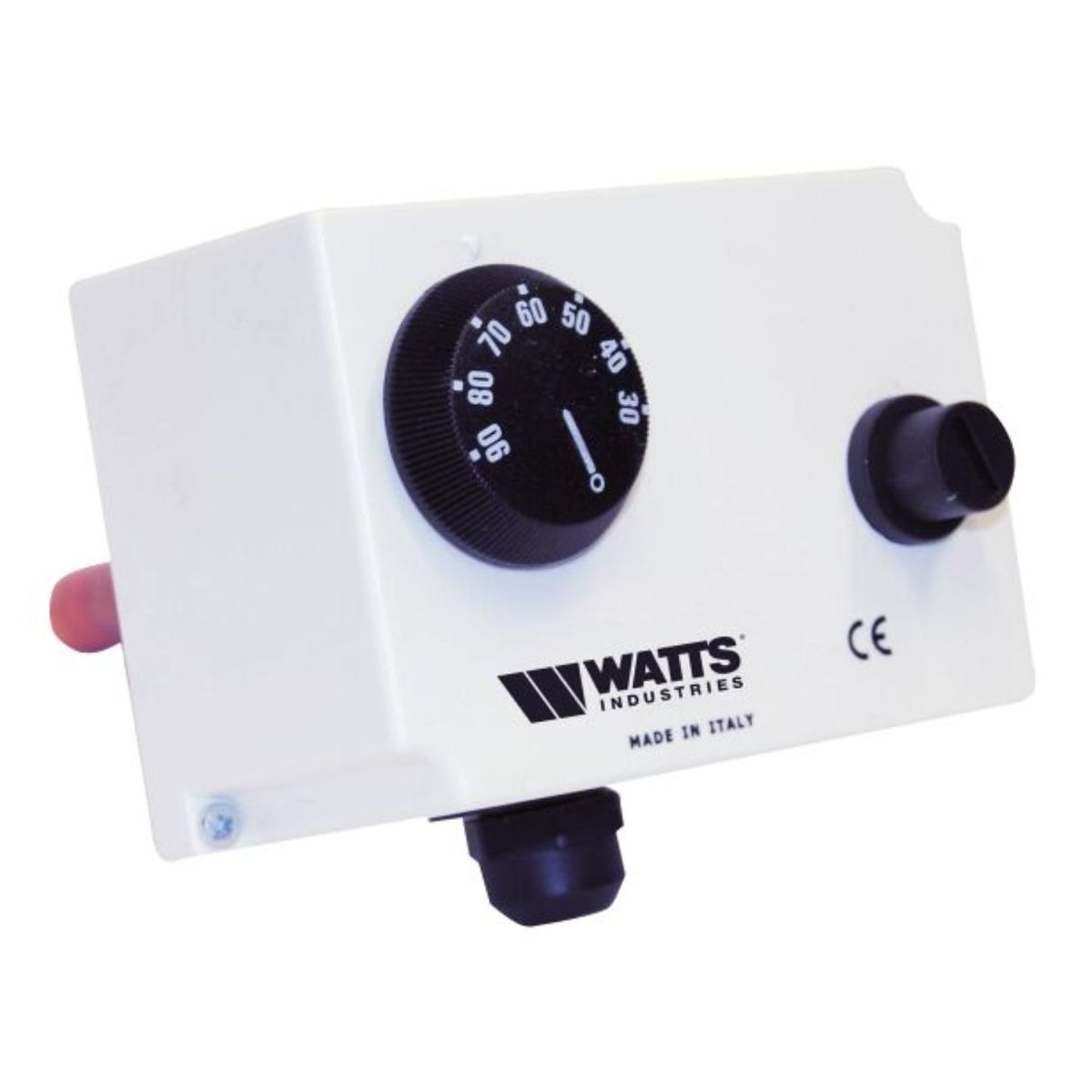

Bithermostat to use when you are looking for precise temperature control and reliable safety in your system.
This device combines regulation and blocking functions, ensuring optimal operation and maximum protection. With this bithermostat you can set the regulation temperature between 30 and 90°C, with a tolerance of only ± 3°C, allowing you to keep the heat exactly where you need it, with its blocking function it intervenes at 95°C, offering an additional level of safety. If this threshold is exceeded, the device requires a manual reset via the dedicated button, ensuring that the intervention is always aware and controlled.
WELLS NOT INCLUDED
Datasheet
• Regulation temperature: 30÷90°C (tolerance ± 3°C)
• Blocking temperature 95°C
• Sensitive bulb with 1/2” M sheath, 100 mm long
• Resin case with external adjustment knob and manual reset button
• Contact rating: 16(5) A 250V; 400V 10(1)A
• Compliant with ENEC 03 Mark
• INAIL approved
• Complies with Directives LVD2014/35/EU
