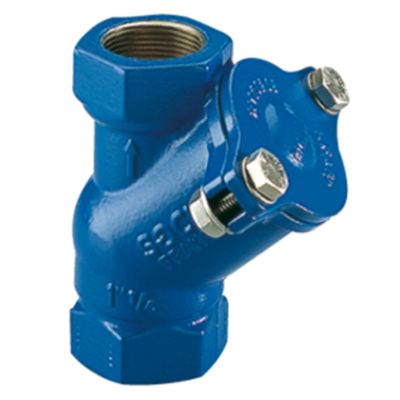

WATTS Socla Series 508 Ball Check Valve
Cast iron body, self-cleaning ball with NBR seal
Description
Ball check valve ideal for wastewater systems and beyond, where it is important that there is no backflow of fluids into the system and thanks to this check valve, pressure return is avoided.
The ball naturally rises as the fluid passes and returns to its seat at the end, ensuring unidirectional flow in hydraulic circuits and can be installed in a horizontal or vertical ascending position, offering flexibility in installations.
Compliance with EC Directive 2014/68/EU Compliance with EC Regulation 305/2011/EU standard EN 12050-4 Threaded fittings in accordance with NF E 03-005 ISO 228
Datasheet
• Operating temperature -10°C to 80°C
• Permissible operating pressure (PFA) in water 10 bar
• Maximum allowable pressure (PS) other fluids 10 bar
• Female/female connection, GAS cylindrical thread (BSP)
• Permitted fluids: Dense liquids, viscous liquids, inert gases, charged liquids
• GJL-250 cast iron body with epoxy coating
• Phenolic resin sphere
• NBR gasket
