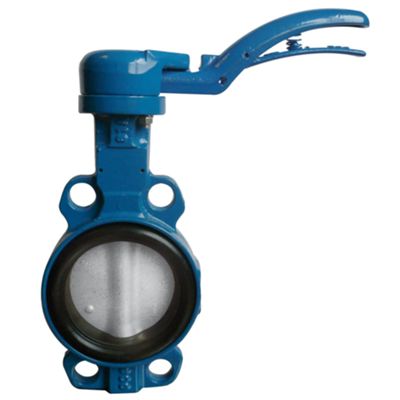

XYLIA2 DN65 Wafer Butterfly Valve – Cast Iron Body, EPDM Seat
For HVAC and plumbing systems – Pressure 16 bar
Installation between PN16 flanges – Compliant with EN593 / PED
Description
The XYLIA2 model butterfly shut-off valve is designed for use in HVAC and plumbing systems and represents a reliable solution for shutting off fluids in heating, cooling and water distribution circuits.
Equipped with a cast iron body (EN GJS450-10) and an EPDM elastomer seat, it guarantees a perfect seal thanks to the tongue and groove profile, designed for installation between PN 16 flanges
The valve complies with EN 593 and is tested according to EN12266-1. It withstands a nominal pressure of 16 bar and temperatures from -20°C to +120°C.
Datasheet
• DN 65
• Wafer (intercept between flanges)
• Body in spheroidal cast iron EN GJS450-10
• 1.4408 stainless steel disc
• EPDM seat (liner)
• Nominal pressure 16 bar
• Operating temperature from -20 °C to +120 °C
• Installation between PN16 flanges according to EN1092-1 / EN1092-2
