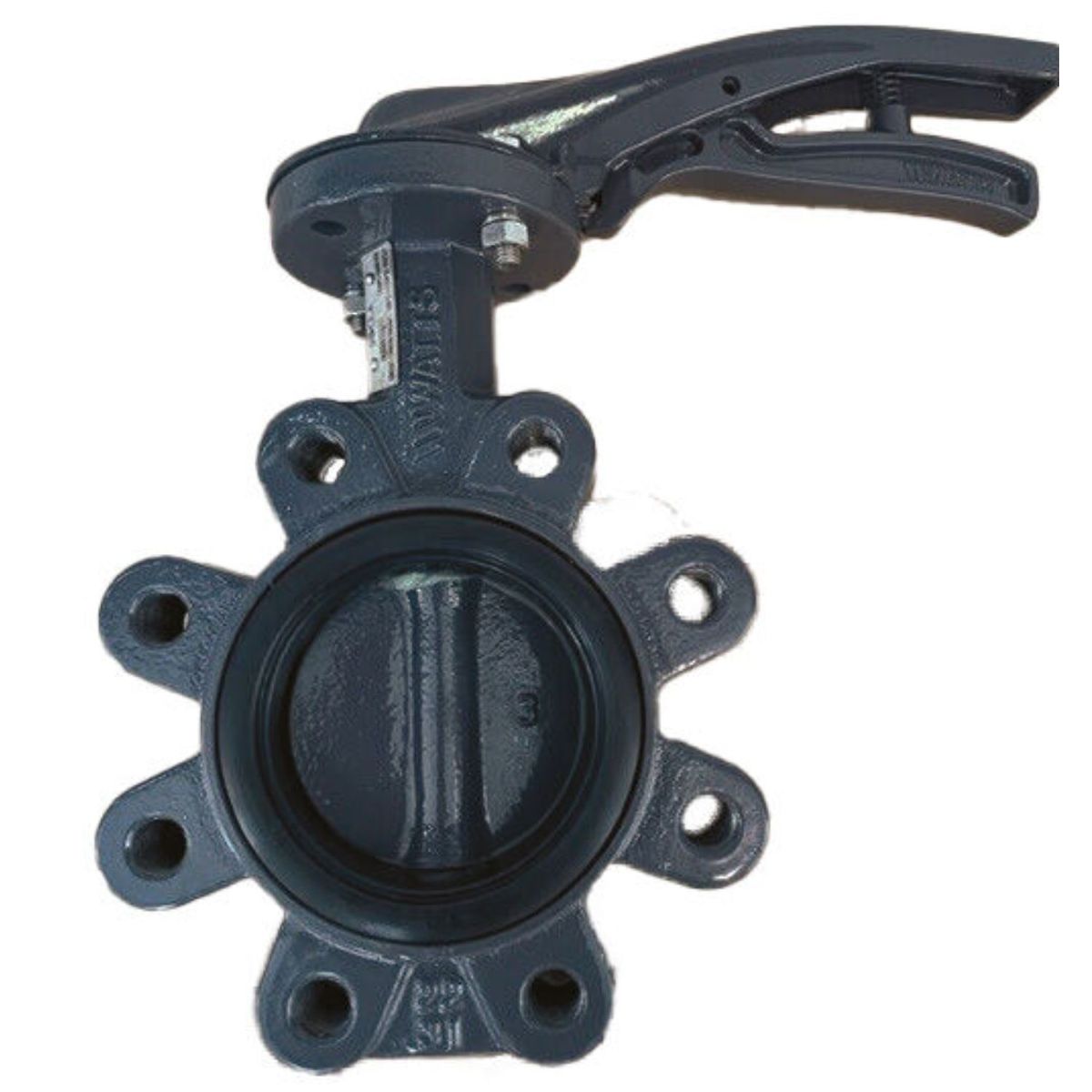

WATTS XYLIA2 butterfly valve – lug with serrated aluminum lever
Ductile iron body, stainless steel or cast iron disc and EPDM seat
For HVAC systems – Pressure 16 bar – Temperature -20 °C / +120 °C
Description
Butterfly valves for applications in HVAC (heating, ventilation, air conditioning) systems, where reliable shut-off and long life are required, suitable for installation between PN16 flanges.
The EN GJS450-10 ductile iron body, combined with the epoxy-coated cast iron or GXS CrNiMo 19-11-2 stainless steel disc, ensures mechanical and corrosion resistance. The EPDM seat ensures a perfect seal even at temperatures up to +120°C and pressures up to 16 bar.

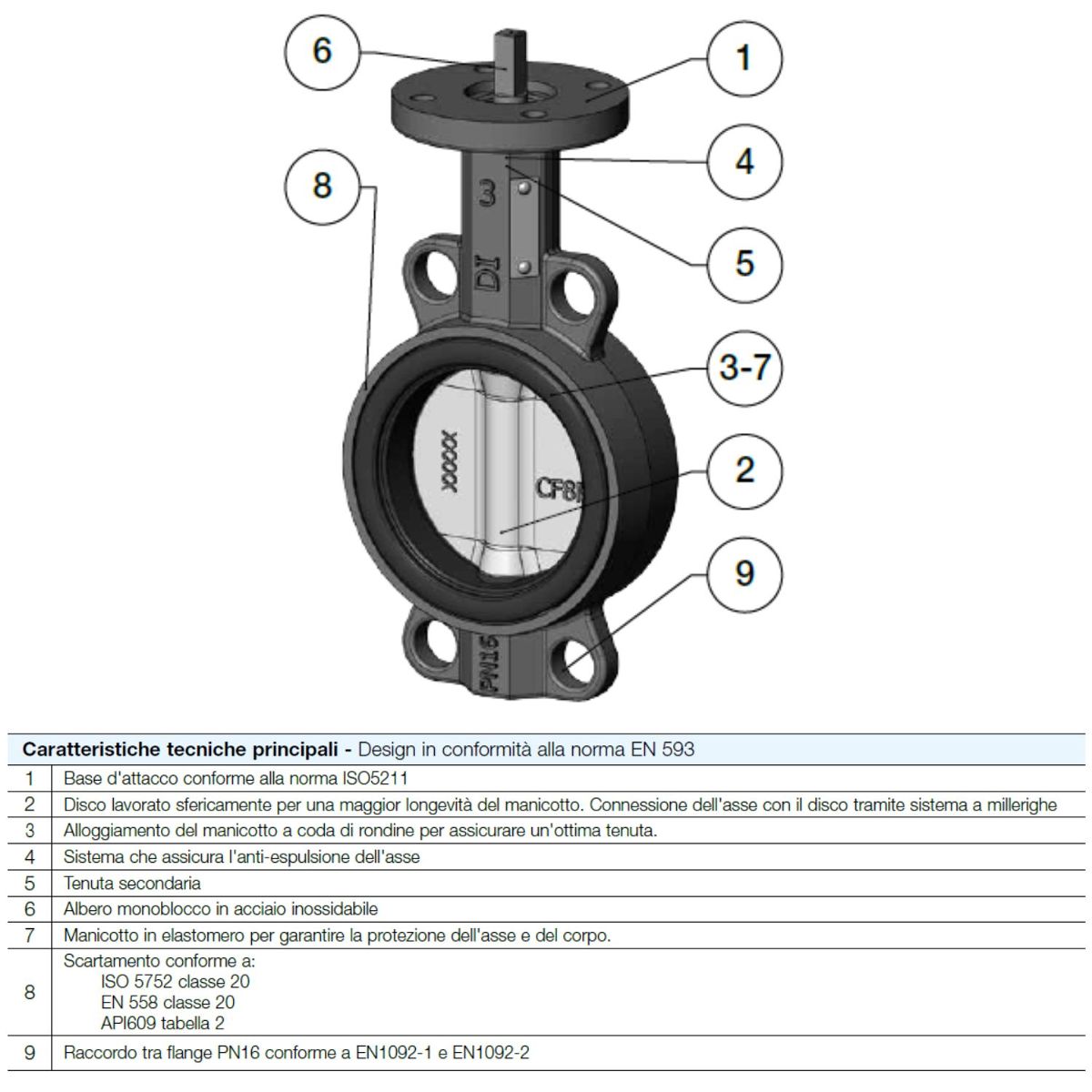

Compliant with EN 593, tested to EN 12266-1 and designed with ISO 5211 connection
Datasheet

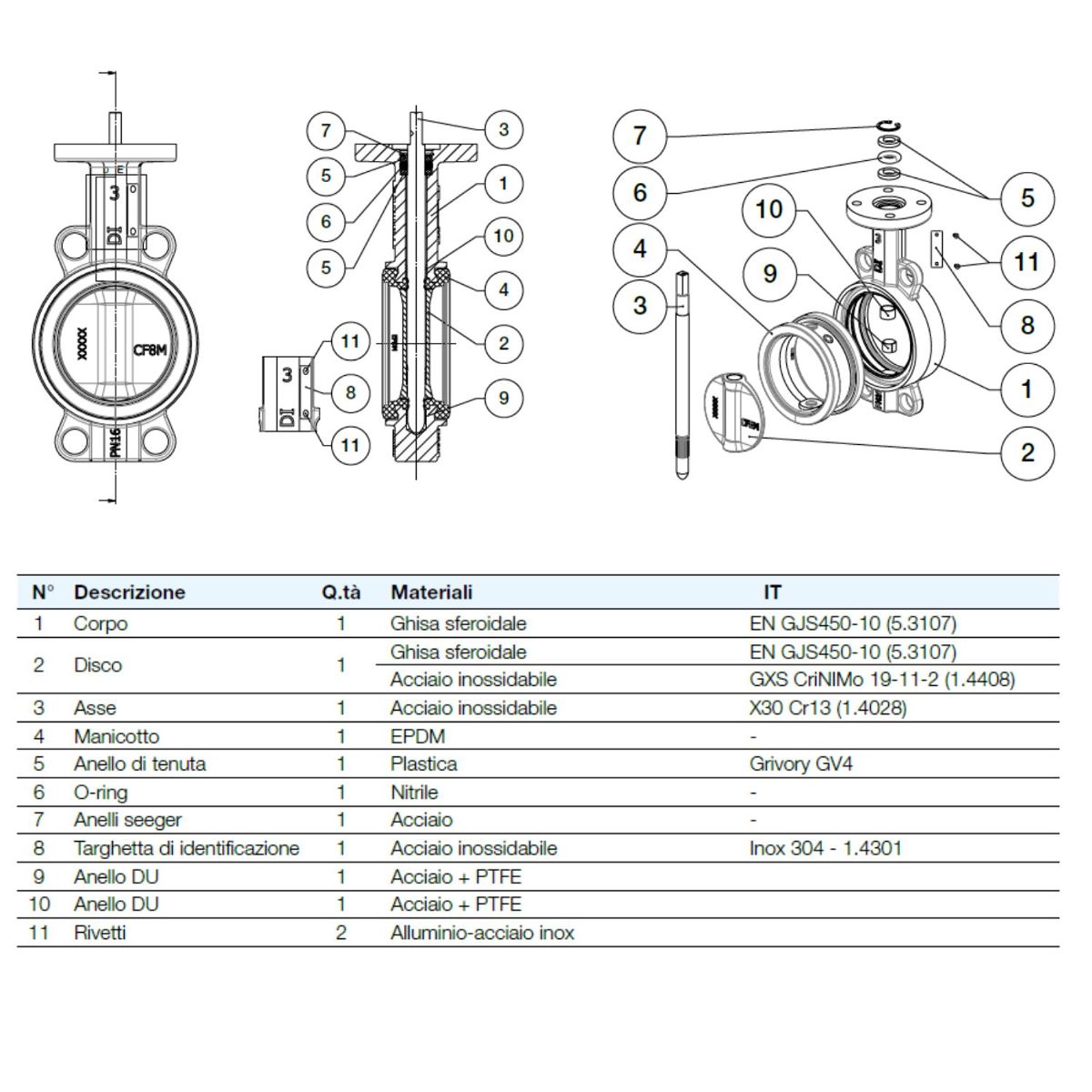

• DN125
• Body in spheroidal cast iron EN GJS450-10
• Epoxy coated cast iron disc or 1.4408 stainless steel
• Single-piece stainless steel shaft X30 Cr13
• EPDM sleeve
• Nominal pressure PN16
• Temperature range from -20 °C to +120 °C
• Assembly between PN16 flanges according to EN 1092-1/2
Properties
