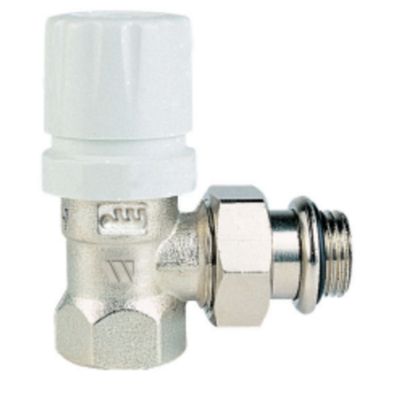

3/8" thermostatic valve, angled, with iron pipe connection
Description
Valve with thermostatic ABS handwheel, square, nickel-plated, with connection for iron pipe adapter.
Compatible with thermostatic actuators Series 148, 148A, 148SD and 148CD and electrothermal actuators Series 22C, 22CX, 22CX5 and 26LC. Certified UNI EN215, in combination with thermostatic actuators Series 148, 148A.
Datasheet
• Valve body Brass CW617N
• ABS Flyer
• EPDM O-Ring
• CW617N Brass Nozzle
• Maximum permissible static pressure 10 bar
• Maximum differential pressure 1.5 bar
• Maximum temperature 110°C
• Usable liquids Water also with glycol ≤ 50%
Properties
Connector:
Iron
Cerifications:
Form:
Angle
Dimension:
3/8"
Material:
Nickel-plated brass
