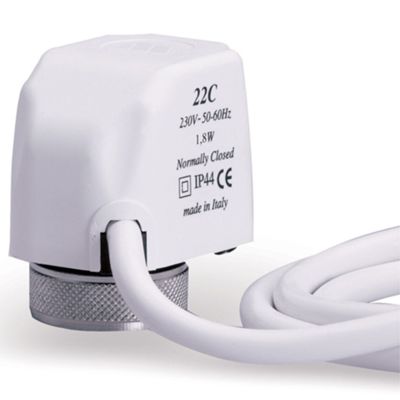

Watts 22C230NC4 - 22C 230V 4 wire actuator

SKU: WTT22C230NC4

Barcode: 8016466100347

Brand: Watts

Compact electrothermal actuator with ON/OFF action

Compatible with thermostatic valves, fan coils and manifolds, 230V

4-wire Normally Closed (NC) version with auxiliary microswitch

€34.84pcs

⏰ Order now and receive it: between and

Based on the shipping address, VAT may change during the purchase process. For more information, click here.

Description

The Watts Series 22C actuator is an ON/OFF device designed for the automatic operation of thermostatic valves, fan coil valves and manifolds.

Equipped with 4 wires and includes an auxiliary contact, useful for additional controls such as metering, pump or fan control.

• ON/OFF action

• Shell made of self-extinguishing polymeric material

• Nickel-plated brass threaded ring M30 x 1.5

• NC version

• 230Vac version

• Power supply frequency 50÷60 Hz

• 4 wires with auxiliary microswitch

• Stroke: 3.5 mm

• Degree of protection IP44 vertical position

• Complies with LVD 2014/35/EU, EMC 2014/30/EU Directives

• TÜV approved

Cerifications:
