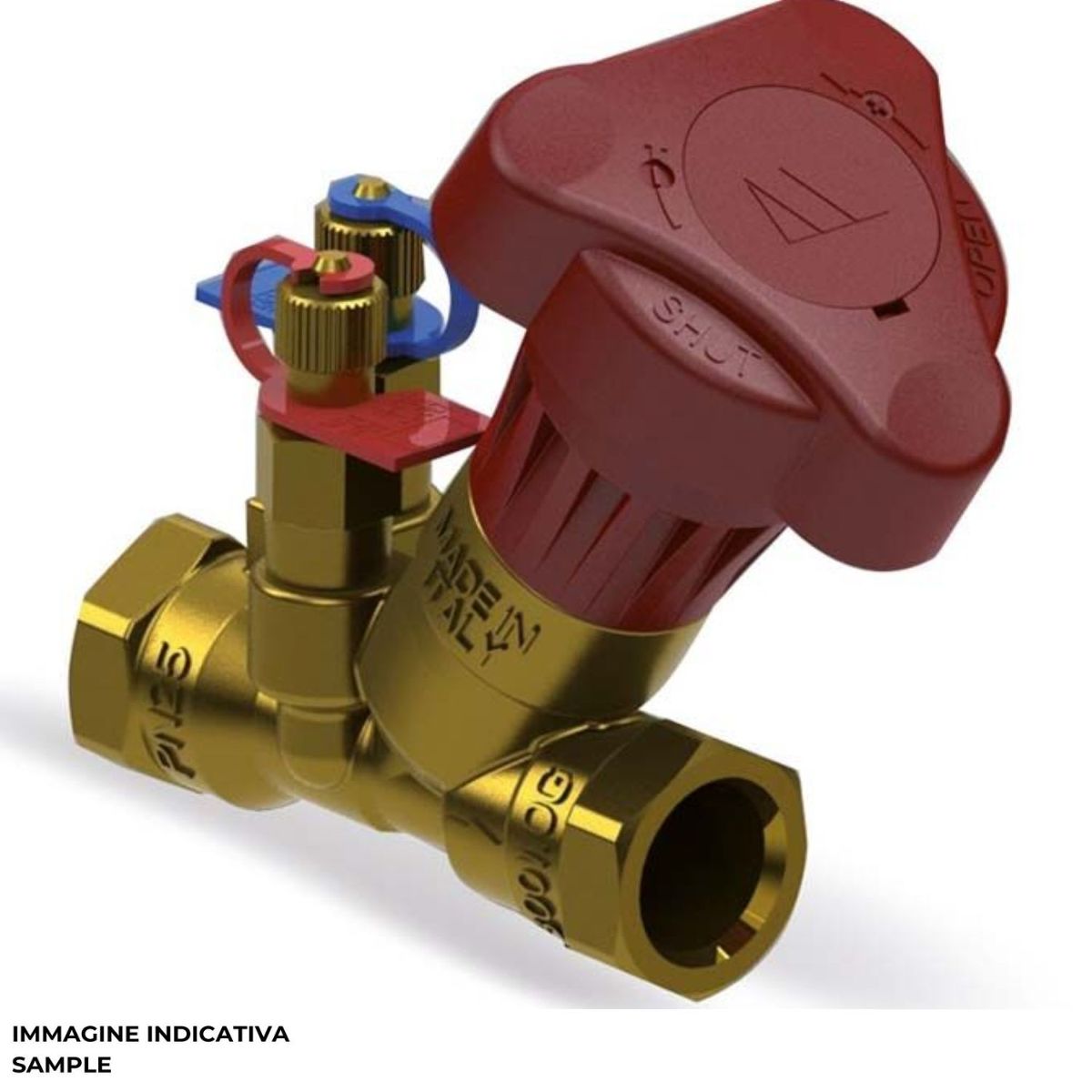

Fixed orifice threaded valves Series FO-BV with threaded connections
Description
Balancing and calibration valves for regulating and controlling flow in air conditioning and hot or cold water distribution systems. Their use in systems ensures proper balancing for accurate flow distribution, resulting in immediate comfort and reduced consumption.
The main feature of these valves is the measurement accuracy given by the presence of the Venturi insert which allows for a maximum deviation between the declared and actual Kvs of only ± 3%.
Datasheet
• Maximum pressure 25 bar for -10°C < T < 110°C / 20 bar for T = 110°C÷120°C
• Fluid operating temperature -10÷120°C
• Kv accuracy ± 3%
• Body-Venturi insert-Shutter-Stem Brass DZR-CW602N
• PTFE shutter seal
• EPDM Stem Seal
• PA6 flyer + 30% glass fiber and POM
Properties
Cerifications:
