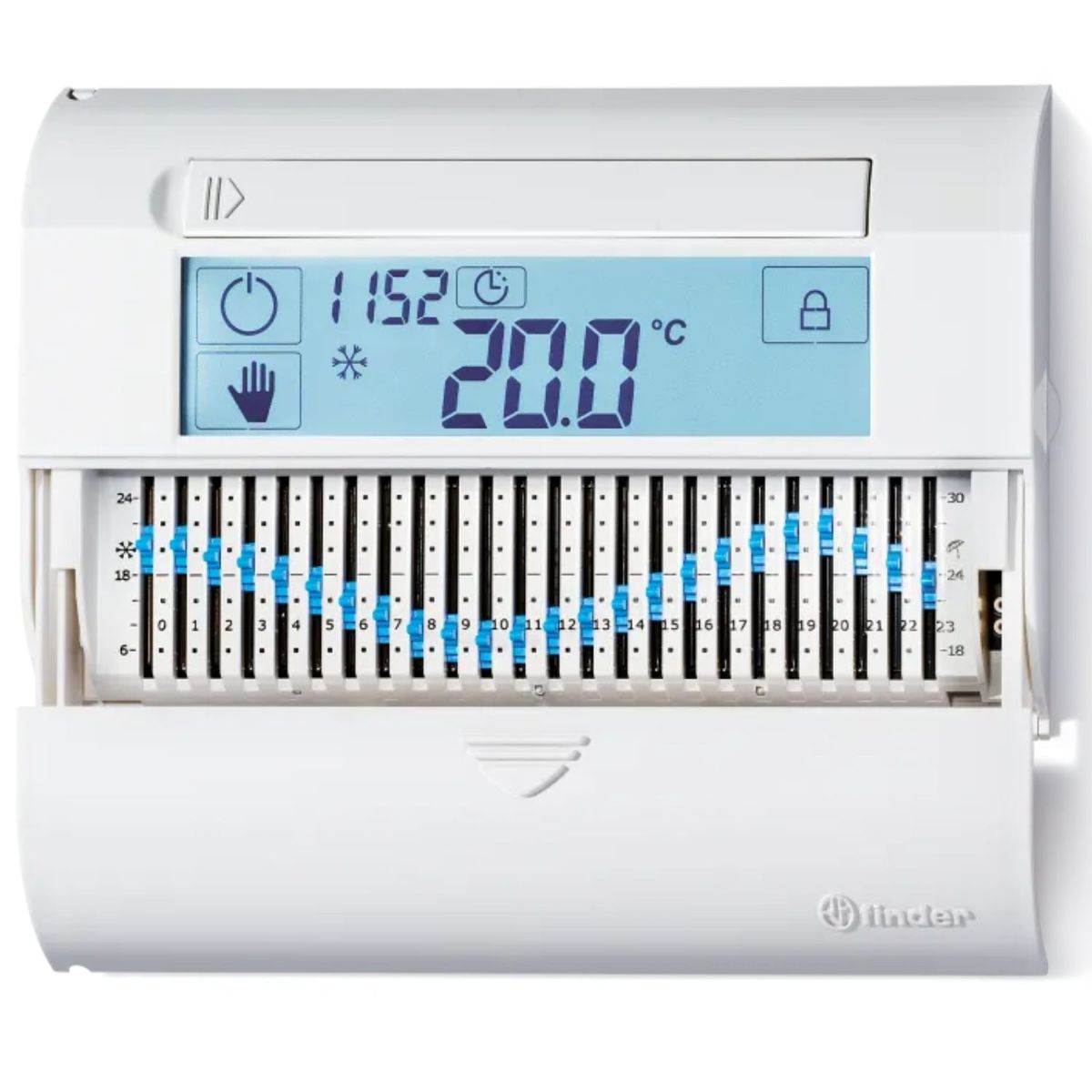

Ultra-thin “touch slide” chronothermostat with just 17 mm and large backlit display. Extreme ease of use and calendar with automatic summer time update. It has Summer/Winter switching and 24 sliders for temperature regulation. Simple or advanced display lock with PIN and with storage of all set values ​​and cursors. Optical and acoustic signaling for confirming keys and functions. Setting for minimum adjustment of 15 minutes. Weekly function that allows you to set the modes: automatic, manual, off for each day of the week. Calibration function and possibility of viewing and regulating external temperatures (with optional probe). Input for remote control. Dynamic icons. Fixing both to the wall and to 3-module flush-mounting boxes (e.g. 503).

The thermostat allows you to turn on and off all types of electrically powered appliances, such as circulation pumps, burners or motor-driven mixing valves.

The use of the thermostat is recommended in domestic rooms.

It must be installed at a height of approximately 1.5 meters from the walking surface in a position suitable for correctly detecting the room temperature, avoiding installation in niches, behind doors and curtains or areas influenced by heat sources or atmospheric factors; in particular, installation on perimeter walls or in association with heat-generating devices (e.g. regulators or lamps) must be avoided.
