Description

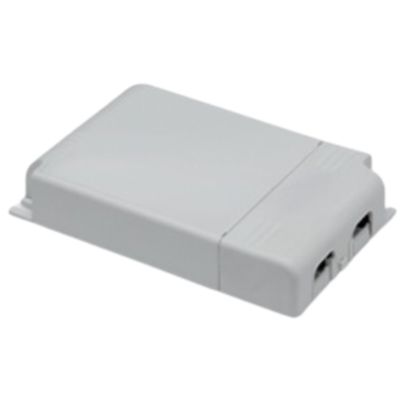

The iGuzzini BZM4.00 is a constant current electronic power supply, designed to offer advanced control via DALI-2 protocol.
With a nominal power of 50 W and an adjustable output current range from 350 to 1050 mA, it is ideal for powering LED modules indoors.
The device is protected against surges up to 4 kV in common and differential mode, ensuring greater reliability and durability over time.
Its compact size (125 × 80 × 22 mm) and low weight (0.20 kg) facilitate integration into various types of installations.
Datasheet
• Rated power 50 W
• Input voltage 220‑240 V AC, 50/60 Hz
• Adjustable output current from 350 to 1050 mA (constant current)
• DALI-2 dimming
• Surge protection 4 kV common mode + 4 kV differential mode
• Inrush current 10 A / 200 µs
• IP20 protection rating
• Dimensions 125 × 80 × 22 mm
• Weight 0.20 kg
• Designed for surface fixing with screws (not included)
• Designed for use with the Laser Blade, Laser Blade XS and Palco Ceiling + Recessed ranges
