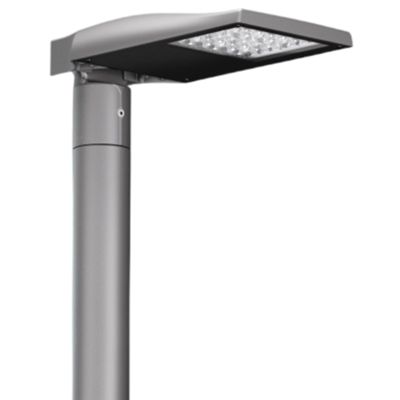

Product photos are indicative only
Description
Pole-mounted luminaire designed for urban street lighting, equipped with a 55.5 W LED source, emits a luminous flux of 9040 lm at 4000 K, with a minimum colour rendering index (CRI) of 70.
The ST1.0 optic ensures road lighting compliant with the I = 4h / d = 1 regulation, while the body is made of die-cast aluminium, with dimensions of 529 × 268 × 204 mm and a weight of 6.05 kg.
It is grey in colour and is dimmable, compatible with Midnight preset and DALI NFC protocols.
Surge protection is guaranteed up to 10 kV in common mode and 6 kV in differential mode.
It is certified with IP66 and IP67 protection levels, compliant with CE, UKCA, ENEC-03 and BIS regulations. The expected lifespan is 100,000 hours (L90 / B10 at 25 °C).
Datasheet
• System power 55.5 W
• Luminous flux 9040 lm
• Color temperature 4000 K
• Minimum CRI 70
• Luminous efficacy 162 lm/W
• Dimmable driver, compatible with Midnight preset / DALI NFC
• Operating ambient temperature -40°C to 35°C
• Surge protection 10 kV (common mode), 6 kV (differential mode)
• Class II
• IP66 / IP67 protection rating
• Material: die-cast aluminum
• Dimensions (mm) 529 × 268 × 204
• Weight 6.10 kg
• Color Gray
• Pole-top or side mounting installation on poles with a diameter of ø46–76 mm
