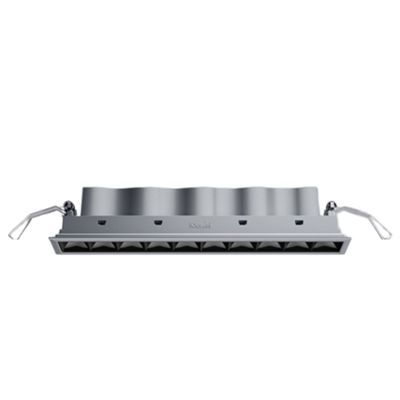

iGuzzini MK54.74 - LASER BLADE recessed spotlight 23.4W 3000K grey/black
Description
The iGuzzini MK54.74 is a recessed LED luminaire designed for indoor environments, with a length of 281 mm, a width of 44 mm and a depth of 54 mm, it is made of die-cast aluminium and weighs 0.65 kg.
Available in Grey/Black, it offers a luminous flux of 1782 lm with a power of 23.4W, while the colour temperature is 3000K with a colour rendering index (CRI) of 90.
The Wide Flood (WF) optic with a 47°/46° opening angle ensures uniform light distribution, the luminaire is equipped with a dimmable electronic group with DALI-2 protocol and has a light output ratio (LOR) of 81%.
The estimated lifespan is more than 50,000 hours (L90 B10 at 25°C).
Datasheet
• Power 23.4W
• Luminous flux 1782 lm (system values)
• Color temperature 3000K (warm light)
• Color rendering (CRI min.) 90
• Wide Flood (WF) 47°/46° optics
• Luminous efficacy 76 lm/W
• Duration > 50,000 h (L90 B10 at 25°C)
• Class II
• Degree of protection IP20 (visible part) / IP23 (light side)
• Material: die-cast aluminum
• Dimensions 281x44x54 mm
• Weight 0.65 kg
• Color Grey/Black (74)
• Flush-mounted installation with wire springs for false ceilings from 1 to 25 mm; preparation hole 37x274 mm
• Wiring via power box with quick-fit connections
• Dimmable electronic group power supply included, DALI-2 protocol
