Description

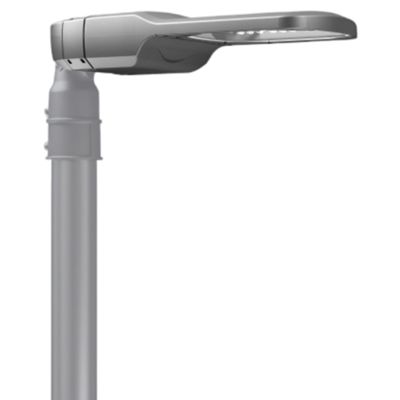

The SG28 U9 by iGuzzini is a “billboard” LED luminaire designed for pole-top installation, with STM (Street Medium Width) optics and a colour temperature of 4000 K.
It supports high luminous efficacy (160 lm/W), is certified for outdoor use with IP66 protection rating, class II and 20 J impact resistance.
It features a built-in electronic power supply, surge protection (10 kV common and differential mode), and an estimated life cycle of 100,000 hours (L90/B10).
Installation requires additional accessories for Ø60 mm or Ø76 mm pole adapters.
Datasheet
• Electrical power 59.9 W
• Luminous flux 9,640 lm
• Color temperature 4,000 K
• Luminous efficacy 160 lm/W
• Street Medium Width (STM) optics
• Electronic power supply included
• Surge protection 10 kV common mode + 10 kV differential mode
• IP66 protection rating
• Class II
• Mechanical shock resistance 20 J
• Operating temperature -40 °C ÷ +50 °C
• Dimensions 450 × 209 × 204 mm
• Weight 2.74 kg
• Estimated life 100,000 hours (L90/B10)
• Installation method: pole-top or side-mounted
