Description

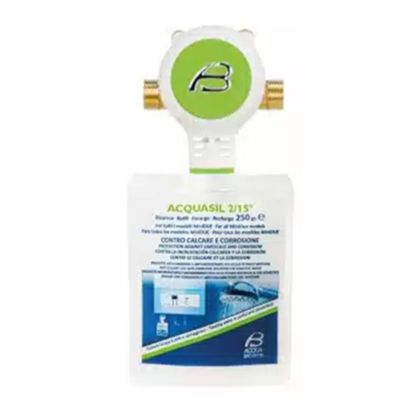

A dosing pump, small, easy to install and simple to maintain minidue is all this!
Compact, can be installed horizontally with a 1/2" M threaded connection, does not require any electrical power, minidue is self-priming , is started hydraulically by a mechanical system which, using the movement of the water, injects controlled quantities of product during the circulation of the system, the high injection frequency ensures homogeneity in dosing.
And when the bag with the product inside is finished, how do I replace it? Nothing could be simpler! The non-return system allows you to refill minidue without having to put the appliance in bypass or close the hydraulic supply, you unhook the old bag and attach the new one, very clean and simple.
What is a dispenser? It is a mandatory device (The Ministerial Decree of 26 June 2015, Annex 1 to chapter 2.3.5, introduced the obligation of chemical treatment for each type of system) in new installations or replacements, to be installed at the boiler inlet in the cold water pipe, which performs an anti-scale and anti-corrosion function.
Datasheet
• Connections 1/2"M
• Minimum start-up flow rate m3/h 0.18
• Flow rate m3/h 0.7
• Mix/max pressure 1.5/10 bar
• Mechanics
• Disposable replacement bags 250gr or 1Kg
