Description

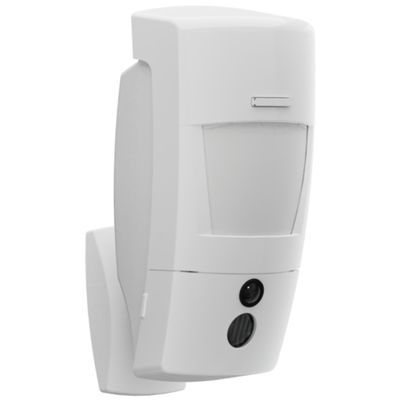

The DL196AX combines advanced technology for accurate surveillance without false alarms from pets, thanks to AnimalSense, the detector distinguishes human movements from those of dogs/cats based on height and thermal patterns.
PIR detection is followed by the automatic recording of a 10-second video sequence (3 fps) on the internal microSD, accessible from the front, and transmission via IP/4G module to the app, control units or via MMS, ensuring rapid visual verification of the alarm.
Equipped with LED lighting up to 7 m, mechanical protection and TwinBand® radio/sabotage protection, it offers a range of up to 1,000 m and autonomy with RXU23X battery up to 5 years.
Datasheet
• PIR detection: 9 beams, 12m, 90°
• HD 640×480 VGA camera, 10 s @ 3 fps sequence
• Video image format JPEG (10 s sequence), MMS 320×240
• Built-in microSD card (stores 10 events)
• Deterrent LEDs up to 7m at 0 lux
• AnimalSense technology distinguishes people from animals
• TwinBand® 868 + 433 MHz radio, range 1 000 m
• Self-protection opening, detachment, radio sabotage
• RXU23X power supply – 4–5 years battery life
• Protection degree IP31 / IK04
• Dimensions 130 × 66 × 64 mm, weight 350 g
• Temperature 0 °C ÷ +55 °C
