Description

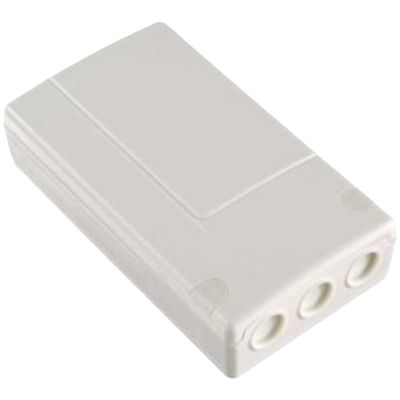

The DL783AX is an external/waterproof receiver designed to control electrical loads (lights, sirens, roller shutters, etc.) via radio commands from keypads, remote controls or control units.
It features: low consumption (17 VA) and IP55/IK04 protection rating, ideal for outdoors, “clean contact” outputs to isolate the load (flashing lights, lights, electric locks), various operating modes: On/Off, timer (from 90 s to 60 min), pulses from 1 s to 9 s and automatic activation on alarm for up to 30 min and TwinBand technology (868+433 MHz) with secure communication, rolling-code and anti-jamming, real range between 500–700 m in free field.
Datasheet
• TwinBand 868 + 433 MHz radio, rolling code, anti-jamming
• Power supply 230 V AC – 16 A protected
• Clean contact output – max 1 500 W halogen 12 V / 1 000 W incandescent
• Autonomy in case of power failure 26 hours
• Consumption 17 VA
• Degree of protection IP55 / IK04 – indoor/outdoor use
• 3 pre-drilled inputs for cable passage
• Flush-mounted installation on Ø 60 mm box or wall bracket
• Radio range approx. 2 m (free line)
• Temperature –20 °C ÷ +70 °C
• Dimensions 150 × 115 × 30 mm
