Description

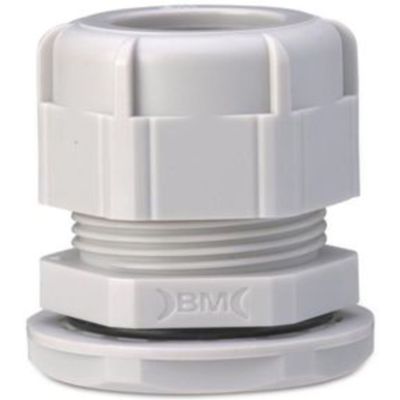

The BM 4709 model is a cable gland made of self-extinguishing polyamide 6.6, compliant with UL 94 V2 and IEC 695-2-1 (850 °C) regulations.
Designed to ensure high protection against dust and liquids (IP68), it is suitable for cables with diameters between 4 and 8 mm.
The internal gasket and washer are made of NBR (nitrile rubber) with a hardness of 70 Shore A, ensuring an effective seal.
The cable gland is supplied complete with fixing nut and gasket, and is intended for use on flat, smooth surfaces.
The operating temperature ranges from -20 °C to +90 °C, the standard colour is grey RAL 7035.
Datasheet
• PG09 thread
• Supported cable diameter 4 - 8 mm
• Thread length 9 mm
• Body material polyamide 6.6 (PA6.6), self-extinguishing
• RAL 7035 grey colour
• IP68 protection rating
• Operating temperature from -20 °C to +90 °C
• Internal gasket and washer NBR (nitrile rubber), hardness 70 Shore A
• Insulation class III
Package Contents:
• Cable gland
• Fixing nut
• Gasket
