Description

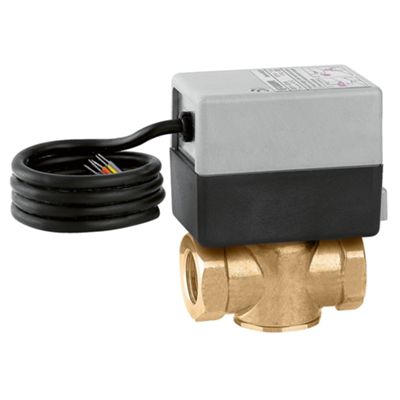

Zone valves are components that have the task of automatically regulating the flow of water in the system, to improve environmental comfort and energy efficiency.
This series of zone valves are equipped with a spring return shutter, a 24V servo control (quick release) which with progressive movements prevents any shocks due to the inertia of the motor.
The servocontrol is also equipped with an auxiliary microswitch, which allows additional devices, such as a circulation pump, to be activated when the valve reaches 60% of its opening. If necessary, it is possible to manually open the valve by acting on the opening lever, with the certainty that when the power supply is restored the system will automatically disengage.
Datasheet
Valve body
Materials
• Body: brass, EN 12165 CW617N
• Shutter rod: stainless steel
• Shutter: EPDM
Performance
• Fluid used: water, glycol solutions (maximum percentage of glycol: 30%)
• Temperature range: 0–90 °C
• Peak fluid temperature: 110 °C
• Max. operating pressure: 16 bar
• Threaded connections: 1/2”, 3/4”, 1” F (ISO 228-1)
Servo Control Performance
• Synchronous motor
• Normally closed
• Power supply: 230 V - 50/60 Hz
• Power consumption: 6.5 W; 7 VA
• Opening time: 70–75 s
• Auxiliary microswitch contact rating: 0.8 A
• Degree of protection: IP 20
• Maximum ambient temperature: 40 °C
• Power cable length: 5x0.75 mm2 - length 95 cm
