Description

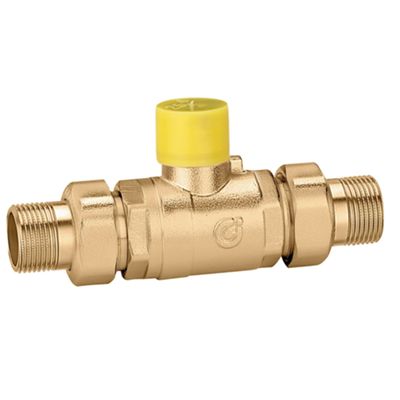

Zone valves are components that have the task of automatically regulating the flow of water in the system, to improve environmental comfort and energy efficiency.
It is particularly suitable when precise temperature control is required in multiple zones, and thanks to its ability to intercept and manage the flow of fluid in the system, it allows us to maintain the ideal temperature in the different zones, avoiding energy waste and improving overall efficiency.
G 1 1/4" A (ISO 228-1) M connection
NOTE: the 6460 model motor must be added
Datasheet
Materials
• Body brass UNI EN 12165 CW617N
• Ball brass UNI EN 12165 CW617N, chrome-plated
• Ball seal PTFE with EPDM O-Ring
• Control rod seal: double EPDM O-Ring
• Nozzle seal EPDM O-Ring
Performance
• Fluids used: water, glycol solutions
• Max. percentage of glycol 50%
• Maximum operating pressure 10 bar
• Operating temperature range -5÷110°C
• Maximum differential pressure 10 bar
Properties
