Description

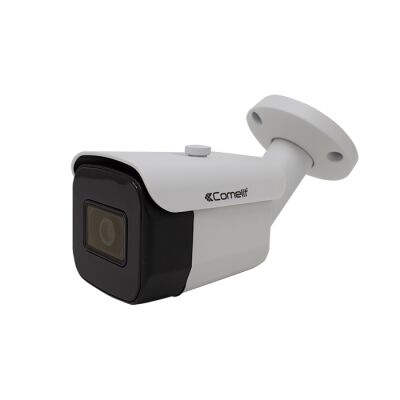

AHD/TVI/CVI/CVBS (960H) Day & Night color bullet camera, 3.6 mm fixed lens, 4K resolution, IP66 waterproof container, 2 infrared illuminators with a range of 25 meters (Smart IR).
Datasheet
• 1/2.8" CMOS sensor
• Resolution 2592 x 1520 (4MP)
• 3.6mm fixed optics
• AHD/TVI/CVI/CVBS (960H) video output
• Video resolution 1920x1080 (Full-HD), 4MP, 4K (8MP), 5MP
• Backlight Compensation (BLC) BLC, HLC
• AHD/TVI frame rate: 8MP@15fps, 5MP@20fps, 4/2MP@25fps. CVI: 8MP@12.5fps, 4/2MP@25fps
• Supply voltage 12VDC
• Max absorption 6W
• Dimensions (WxHxD) 77 x 75 x 175 mm
• Type of cladding materials Die-cast aluminum
• Operating temperature (°C) -10 ÷ 50 °C
