Description

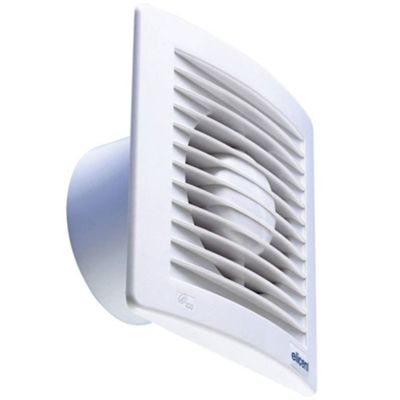

Extra-flat helical extractor, designed for direct expulsion, ideal for small and medium-sized environments such as bathrooms, kitchens and laundries, its compact structure with a front protrusion of only 17 mm makes it discreet and suitable for various architectural solutions.
The TIMER version is equipped with an adjustable electronic timer that delays the switch-off of the appliance from 3 to 25 minutes, ensuring complete air renewal in the room and preventing unnecessary operations caused by failure to switch off the light switch.
The high-quality antistatic technopolymer structure guarantees durability and corrosion resistance, while the 230V-50 Hz induction motor with thermal protection is suitable for continuous service.
The self-lubricating Long Life bushings ensure long life and constant silence over time.
The extractor is equipped with a non-return damper that prevents the air from re-entering, easily removable in case of installation with an external gravity grille, the front part, free of electrical components, is easily removable and washable, facilitating maintenance.
Datasheet
• Extra-flat helical aspirator for direct expulsion
• Pipe diameter 100 mm
• Maximum flow rate 90 m³/h
• Maximum pressure 41 Pa
• Power consumption 14 W
• Noise level (at 3 meters) 31.4 dB(A)
• IPX4 protection rating
• Insulation class II (double insulation)
• High quality antistatic technopolymer body material
• 230V induction motor with thermal protection
• Self-lubricating Long Life bush bearings
• Wall or ceiling installation
• Accessories included: Removable non-return damper
• Application in bathrooms, kitchens, laundries, storage rooms
