Conductor color blue brown
Sold by the metre
Description

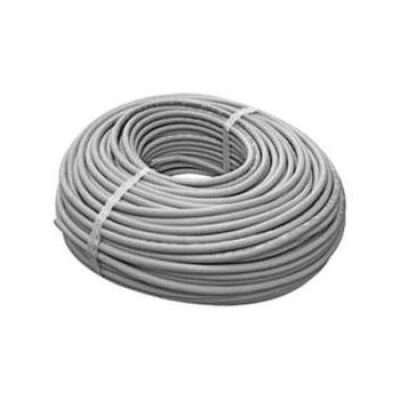

Multi-core cable for energy, control, signaling, command or measurement systems with oil-resistant outer sheath.
The fire prevention characteristics (low risk of bundle installation) and the small external dimensions make it particularly suitable for intercoms, civil and industrial internal applications and on board machines.
This cable can always be installed in coexistence with 450/750V power cables and furthermore, if used to power category 0 systems (nominal voltage less than or equal to 50V, if with alternating current, or 120V, if with direct or non-corrugated current) , can also be installed in coexistence with 0.6/1kV energy cables that power loads with a nominal voltage of 230/400V.
Furthermore, it can also be used for occasional acyclic mobile installation applications without stress.
Underground installation is not permitted even if protected, nor permanent installation outdoors even if protected.
Datasheet
• Gray (based on RAL 7035)
• External sheath operating voltage 450/750V
• Flexible red copper core, class 5
• PVC-based insulation mix, R2 quality
• Twisted/concentric crown core stranding
• PVC-based mix outer sheath, R16 quality,
• Oil-resistant outer sheath in accordance with CEI EN 60811-404
