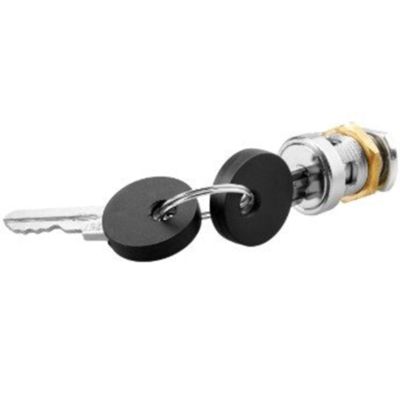

The Gewiss GW40422 is a cylinder safety lock with key, designed to ensure the protection of Gewiss series electrical panels and switchboards, preventing unauthorised access.
Description
Lock compatible with Gewiss switchboards and distribution boards of the 40CD and 40CDK series, both flush-mounted and wall-mounted, with blind or transparent doors.
Made of die-cast metal, it offers high mechanical resistance and long life.
The kit includes the cylinder lock and two keys, providing an effective solution to increase the security of electrical systems in residential, tertiary and industrial environments.
Datasheet
• Die-cast metal material
• Grey color
• Compatibility with Gewiss 40CD and 40CDK series switchboards and panels
• Application on switchboard/cabinet door
• Cylinder lock, 2 keys included
• Degree of protection IP40
• Operating temperature from -5°C to +60°C
• Rated voltage 400 V AC
• Insulation voltage 750 V
Properties
Cerifications:
