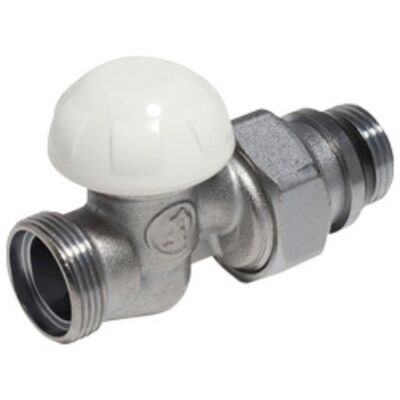

Straight lockshield, with connection for R31TG 1/2" x 16 adapter
Description
Straight lockshield valve, in brass, chromed, with connection for copper, plastic or multilayer pipe adapter.
Temperature range 5÷110 °C, maximum operating pressure 16 bar.
3/4" sizes: union without self-sealing, brass cap, to connect to the pipe use the R178, R179 or R179AM adapters.
Straight lockshield valve, chromed, with connection for copper, plastic or multilayer pipe adapter, body and main components: brass UNI EN 12165 CW617N, chromed, monobloc control rod: brass UNI EN 12164 CW617N.
Protection cap: ABS (3/8” - 1/2”) or brass (3/4”), depending on the codes. Seals: EPDM. Fluids for use: water and glycol solutions (max. 30%). Temperature range: 5÷110 °C. Maximum operating pressure: 16 bar.
Datasheet
Certifications:
• THERE IS
