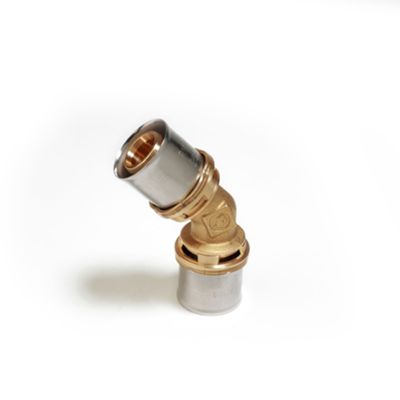

45° curved fitting, multi-clamp press fitting 50 x 4
Description
45° curved press fitting with multi-clamp with body in stamped brass CW617N (from Ø 16 to 63 mm); in cast brass CC770S (from Ø 75 to 90 mm), for plastic or multilayer pipes.
Double black EPDM sealing O-Ring for hydraulic systems and AISI 304 stainless steel compression sleeve. Pressing profile TH, H, U for Ø 16, 20, 32 mm - TH, H for Ø 26 mm - TH, U for Ø 40, 50 mm - TH for Ø 63 mm - U for Ø 75, 90 mm.
Temperature range 5÷110 °C and maximum operating pressure 10 bar.
Datasheet
• Body in forged brass CW617N - EN 12165
• Double black EPDM sealing O-ring compliant with EN 681-1 standard
• Maximum percentage of glycol diluted in water 50%
• Compression sleeve in stainless steel AISI 304
• Temperature range 5÷110 °C
• Maximum operating pressure 10 bar
Properties
Pressing profile:
U
TH
Cerifications:
Figure:
Bend
Dimension:
DN 50
Material:
Brass
Type of joint:
To press
