Description

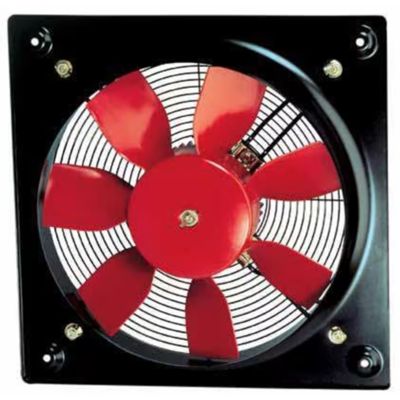

Axial wall fan with fiberglass reinforced plastic impeller, single-phase motor, IP65, Class F with built-in thermal protection and terminal box with capacitor included.
4 pole motor.
Datasheet
Technical specifications:
• Speed 1420 rpm
• Mouth diameter 400 mm
• Maximum power consumption 271 W
• Maximum intensity 230 V 1.2 A
• Sound pressure levels 62 dB(A)
• Maximum flow rate 4920 m3/h
• Weight 9 kg
• Speed regulator REB-2.5 - RMB-3.5
