Description

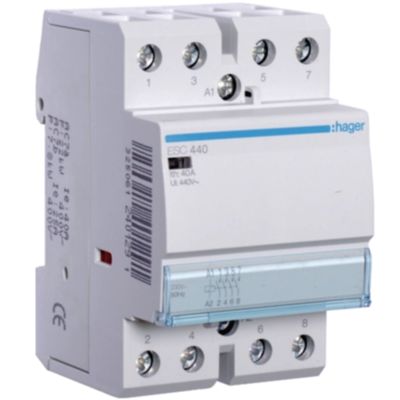

The Hager ESC440 is a robust and reliable modular contactor, featuring four normally open contacts (4 NO), designed for DIN rail mounting.
It supports currents up to 40 A (utilization category AC-7a/AC-7b), with a control voltage of 230 V AC.
It guarantees nominal insulation up to 440 V, impulse withstand up to 4000 V, and complies with EN 61095 and VDE 0106-100 protection against accidental contact.
It has an inrush current draw of 62.5 VA and a dissipated power of 14.3 W at full load.
Designed to last, it is certified for 100,000 mechanical operations and 30,000 electrical cycles.
Measuring 85 x 54 x 60 mm (H x W x D), equivalent to 3 DIN modules, it offers a compact and safe integrated configuration with viewing window and labelling field.
Datasheet
• Contact type 4 NA (normally open)
• Rated current 40 A (AC-7a/AC-7b category)
• Control voltage 230 V AC
• Number of modules 3 DIN modules
• Inrush current consumption 62.5 VA
• Total dissipated power 14.3 W
• Insulation voltage (Ui) 440 V
• Impulse withstand voltage (Uimp) 4000 V
• Mechanical life 100,000 operations
• Electrical life 30,000 cycles
• Dimensions (H × W × D) ~85 × 54 × 60 mm
• Screw terminal cable entry
• DIN rail mounting
