Description

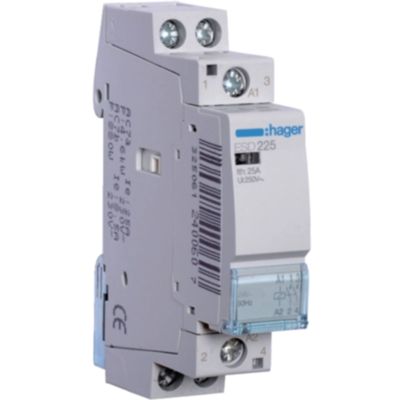

The Hager ESD225 is a compact modular contactor suitable for DIN rail mounting, featuring two normally open contacts (2 NO) with rated current up to 25 A.
Powered at 24 V AC, it offers insulation ratings up to 250 V, impulse withstand of 4000 V, a life cycle of 100,000 mechanical operations and 30,000 electrical cycles.
It consumes 10.70 VA during attraction and dissipates approximately 4 W, and complies with the AC-7a/AC-7b usage categories, ideal for residential and light industrial use.
Datasheet
• Contact type 2 NA
• Rated switching current 25 A
• Control voltage AC 24 V
• Rated operating voltage 230 V AC
• Insulation voltage (Ui) 250 V
• Impulse withstand voltage (Uimp) 4000 V
• Number of modules 1
• Inrush power consumption 10.70 VA
• Total dissipated power 4 W
• Number of mechanical maneuvers 100,000
• Electrical life (cycles) 30,000
• Flexible conductor cross-section 1–6 mm²
• Rigid conductor cross-section 1–10 mm²
• Operating temperature –10 °C +50 °C
• Degree of protection IP20
