Description

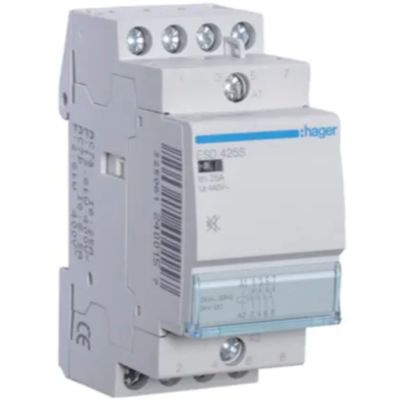

The Hager ESD425S is a silent modular contactor with 4 normally open contacts (4 NO) and a rated current of 25 A at 400 V AC (utilization category AC-7a/AC-7b).
It works with a 24 V AC coil and absorbs only 2.80 VA in peak power, dissipating 8.80 W.
Thanks to its low noise design, it is perfect for residential applications, offers isolation up to 440 V, impulse withstand of 4000 V, supports up to 100,000 mechanical cycles and 30,000 electrical cycles.
DIN rail mounting (2 modules).
Datasheet
• Contact type 4 NA (normally open)
• Rated switching current 25 A
• Control voltage 24 V AC
• Number of modules 2 DIN modules
• Starting power consumption 2.80 VA
• Total dissipated power 8.80 W
• Insulation voltage (Ui) 440 V
• Impulse withstand voltage (Uimp) 4000 V
• Rated operating voltage up to 400 V AC
• Mechanical maneuvers 100,000 cycles
• Electrical life 30,000 cycles
• Flexible conductor cross-section 1–6 mm²
• Rigid conductor cross-section 1–10 mm²
• Operating temperature –10 °C +50 °C
• Degree of protection IP20
