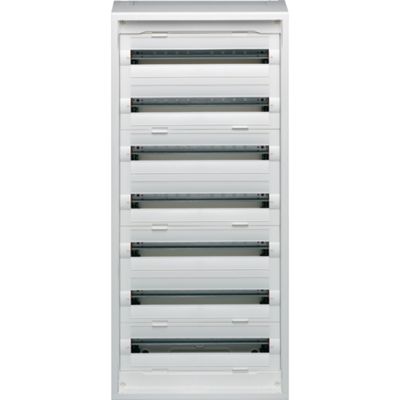

VegaD wall-mounted cabinet with a height of 1200 mm, equipped for 168 DIN modules, protection degree IP30, insulation class II, without door
Description
VegaD series distribution board, designed for wall installation, equipped for 168 DIN modules (7 rows of 24 modules).
Constructed from a combination of metal and white RAL 9010 plastic, it offers IP30 protection, class II insulation and IK07 impact resistance.
It is not equipped with a door or neutral or earth terminals, the maximum nominal current is 160 A, with walls thickness of approximately 1 mm.
Datasheet
• VegaD Series
• Equipped wall-mounted panel type (without door)
• DIN 168 modules (7 rows × 24 modules)
• Rated current (In) 160 A
• IP30 protection
• Class II insulation
• IK07 impact resistance
• RAL 9010 color (pure white)
• Material metal/plastic
• Wall mounting
• Wall thickness approximately 1 mm
Properties
Cerifications:
