Description

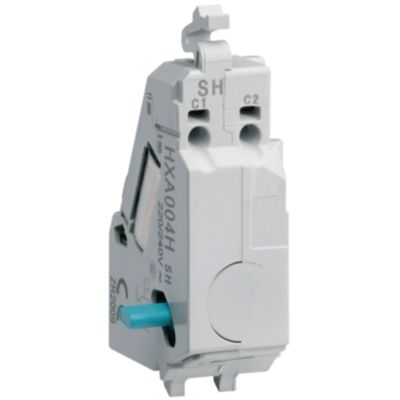

Shunt trip coil specifically designed for h3 x1000 molded case circuit breakers.
Its main purpose is to allow the switch to be opened remotely, by means of an electrical impulse with a voltage greater than 70% of the nominal voltage.
Connections are made via practical spring terminals.
After activation, the coil requires a manual reset, preventing accidental closing of the switch until reset.
Datasheet
• Control voltage (AC) 200 - 240 V
• Inrush power consumption 3.36 VA
• IP4X protection rating
• Compatibility with h3/h3+ x/P160, x/P250, x/P630 moulded case circuit breakers
• Remote opening function with impulse > 70% of the nominal voltage
• Connection method: spring-loaded terminals (cables 0.5 – 1.25 mm²)
• Manual reset, with locking block as long as it is active
