Pluggable auxiliary contact 1 NO + 1 NC, side mounting, for rotary switches and disconnectors from 20 to 160 A and 20–80 A
Description

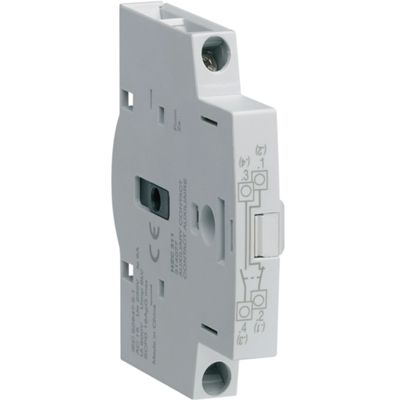

The Hager HZC311 is an auxiliary module designed for monitoring the operating status of rotary switches or isolators (HAB, HAC, HAE 4P 20-160 A and HIM 4P 20-80 A).
Equipped with a closing contact (NO) and an opening contact (NC), it improves safety in the system by complying with the CEI EN 60947-3 standard.
It mounts sideways by means of a push-fit and features screw connections for reliable installation.
Datasheet
• Auxiliary contact type 1 NO + 1 NC
• Application of 20-160 A and 20-80 A switch disconnectors/switches
• Plug-in version, side mounting
• Screw terminal electrical connection
• Rated operating current AC-15, 230 V 6 A
Properties
