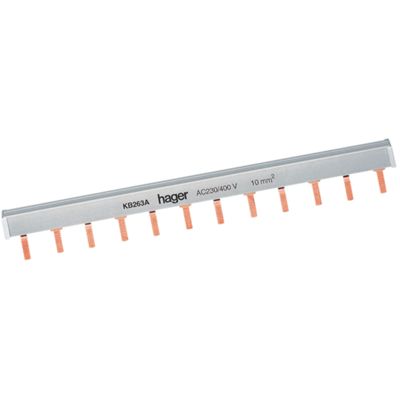

Hager KB263A - 2P 12M wiring strip

SKU: HAGKB263A

Barcode: 3250613720339

Brand: Hager

2P (phase + neutral) 63 A single-pole wiring bar, 12 DIN modules, ideal for horizontal distribution in modular panels

€12.34pcs

Other supplier availability Other supplier availability Other supplier availability Other supplier availability

⏰ Order now and receive it: between and

Based on the shipping address, VAT may change during the purchase process. For more information, click here.

Description

The Hager KB263A is a grey insulated busbar, designed to connect phase and neutral in a modular structure, with a width equivalent to 12 DIN modules.

It supports a nominal current of 63 A and operating voltages up to 400 V AC, with a pulse resistance of up to 4 kV.

Thanks to the pin connectivity, it guarantees quick and safe installation, suitable for dense circuit distributions within electrical panels.

• Number of poles 2 (phase + neutral)

• Rated current 63 A

• Length 210 mm

• DIN 12 modules

• Operating voltage 230–400 V AC

• Impulse withstand voltage (Uimp) 4 kV

• Recommended conductor cross-section 10 mm²

Cerifications:
