63 A four-pole wiring bar, 24 DIN modules, 420 mm, ideal for compact horizontal distribution in modular panels
Description

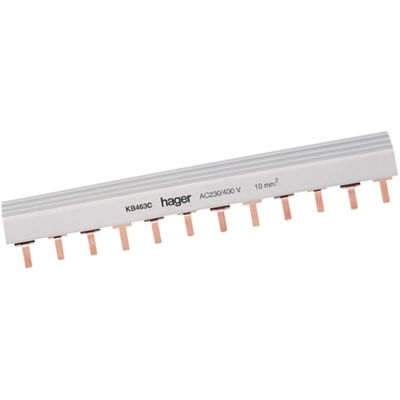

The Hager KB463C is an insulated wiring bar equipped with pins (tips), designed to simultaneously connect phase and neutral in modular electrical panels.
It supports up to 63 A, has a length of 420 mm (24 DIN modules) and withstands impulses up to 4 kV, with operating voltages between 230 and 400 V AC.
The recommended solid conductor cross-section is 10 mm², ensuring robust and quick connections.
Very suitable for systems that require quality and safety in distribution.
Datasheet
• Number of poles 4
• Rated current 63 A
• Length 420 mm (24 DIN modules)
• Rated operating voltage 230–400 V AC
• Impulse withstand voltage (Uimp) 4 kV
• Rigid conductor cross-section 10 mm²
• Connection type: pin
Properties
Cerifications:
