Description

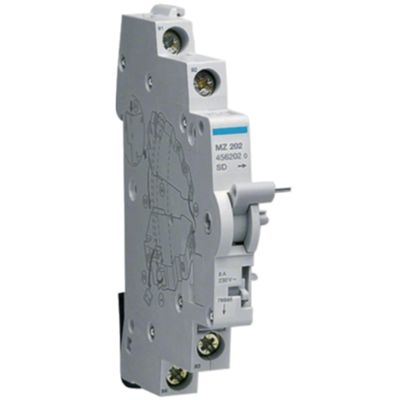

The Hager MZ202 combines the functions of auxiliary contact (1 normally open + 1 normally closed) and fault signalling in a very compact module (0.5 DIN modules).
Designed for snap-on installation on DIN rails, it supports currents up to 6 A at 230 V AC, with isolation up to 4000 V and power dissipation of just 0.20 W.
It offers a mechanical life of 12,000 operations and an electrical life of 6,000 cycles, operating between –25°C and +60°C.
Datasheet
• Rated current 6 A
• Contact type 1 NC + 1 NO
• Connection type: screw terminal
• Snap-on mounting on DIN rail
• Number of modules 0.50
• Flexible conductor cross-section 6 mm²
• Rigid conductor cross-section 10 mm²
• Rated insulation voltage (Ui) 4000 V
• AC supply voltage (230 V)
• Operating temperature –25 °C +60 °C
• Number of mechanical maneuvers 12,000
• Electrical life (cycles) 6000
• Dimensions width 9, depth 68 mm
