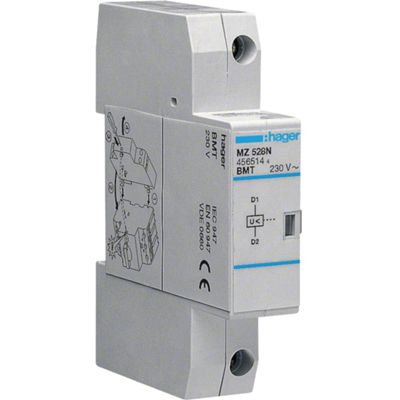

Hager MZ528N - minimum voltage coil 230V 1M

Name: Hager MZ528N - minimum voltage coil 230V 1M
Brand: Hager
SKU: HAGMZ528N
Price: 45.55 EUR
Availability: InStock

SKU: HAGMZ528N

Barcode: 3250614565144

Brand: Hager

Undervoltage coil for motor starters, 230 V AC, DIN rail mounting (1 module)

€45.55pcs

Other supplier availability Other supplier availability Other supplier availability Other supplier availability

⏰ Order now and receive it: between and

Based on the shipping address, VAT may change during the purchase process. For more information, click here.

Description

Undervoltage release designed to prevent automatic restarting of motors after a power failure.

It connects via screw, operates at 230 V AC and is compact (1 DIN module), offering reliable protection and compatibility with modular DIN systems.

• Rated insulation voltage (Ui) 6000 V

• Inrush consumption 5 VA

• Ingress protection class IP20

• Operating temperature –25 °C +55 °C

• AC power supply voltage type

• Electrical connection: screw

• Modularity 1 DIN module (width 17.50 mm, depth 68 mm)

Cerifications:
