Description

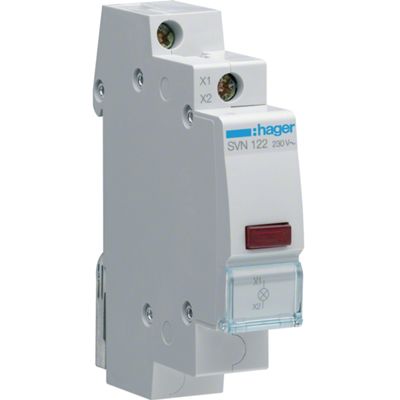

The Hager SVN122 is an elegant red LED indicator light for DIN rail mounting, ideal for control and signalling applications.
Powered by 230 V AC, it occupies just one DIN module and is connected via screw terminals, supporting conductor cross-sections of up to 10 mm² (rigid).
It offers a power of only 0.80 W, with IP20 front protection degree, resisting impulses up to 4 kV and with a nominal insulation voltage of 250 V.
The operating temperature ranges from –20°C to +50°C, making it robust and reliable.
Datasheet
• Rated operating voltage 230 V AC
• DIN 1 modules
• Power dissipation 0.80 W
• Screw terminal connection
• Flexible conductor cross-section 0.75–6 mm², rigid 0.75–10 mm²
• Insulation voltage Ui 250 V; impulse voltage Uimp 4 kV
• Dimensions (HxWxD) 83 × 17.5 × 62 mm
• Front IP IP20
• Operating temperature –20 °C to +50 °C
