600 × 300 mm horizontal panel kit for housing an X630 residual current circuit breaker, compatible with Quadro 4 and Quadro 5-Q+ systems
Description

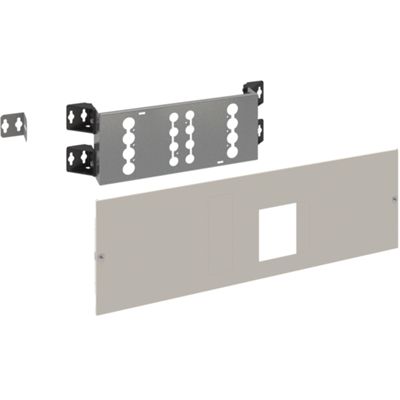

The Hager UC463XR is a kit designed to facilitate the installation of an X630 residual current circuit breaker in a horizontal position.
The kit includes a support panel 600 mm wide and 300 mm high, made of RAL 9010 painted steel, with IP30 front protection.
Designed for Quadro 4 and Quadro 5-Q+ systems, it combines clean aesthetics with robustness and complies with RoHS and REACH environmental requirements.
Datasheet
• Intended use of X630 differential molded case circuit breaker (horizontal mounting)
• Panel dimensions 600 mm (W) × 300 mm (H)
• Material: white powder-coated steel (RAL 9010)
• Front protection degree IP30
• Compatibility Quadro 4 and Quadro 5-Q+ systems
• RoHS, REACH environmental certifications
Properties
Cerifications:
