Description

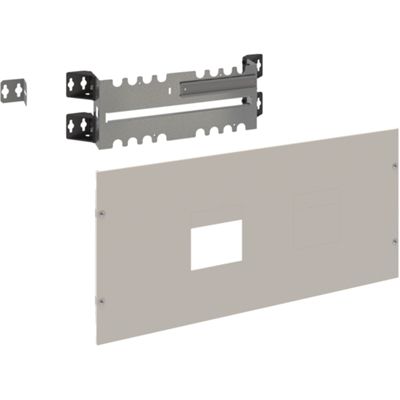

The Hager UC464P is a ready-to-use kit designed to house two P630 series molded case circuit breakers in a vertical position inside the Quadro 4 and Quadro 5-Q+ modular panels.
The front panel is made of white painted steel (RAL 9010), with dimensions of 600 mm wide and 400 mm high, and offers IP30 type protection on the front.
The kit is RoHS compliant and halogen-free, ensuring a robust and elegant casing, ideal for applications in residential and industrial environments.
Datasheet
• Compatibility with 2 P630 moulded case switches, fixed vertical mounting
• Panel dimensions 600 mm (W) × 400 mm (H) × 200 mm (D)
• Material: RAL 9010 painted steel
• Front protection degree IP30
• Supported systems Quadro 4 and Quadro 5-Q+
• RoHS environmental compliance, halogen free
