Description

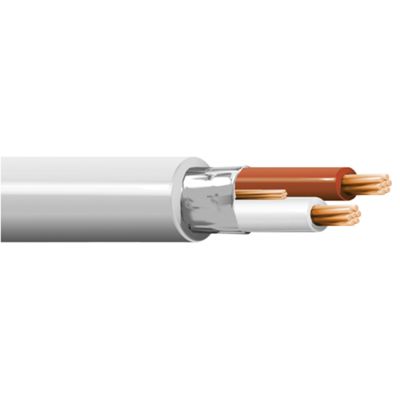

Security and alarm cable with two 0.22 mm² copper conductors, suitable for fixed installations in alarm systems, intrusion detection and fire detection systems.
The conductor is insulated with flame-retardant PVC for greater safety and the outer sheath is also made of flame-retardant white PVC.
The assembly is classified Cca-s3,d1,a3 according to the CPR regulation on reaction to fire.
The cable is designed for the transmission of control signals and is not suitable for use as a power cable; however, it can coexist with 450/750 V and 0.6/1 kV power cables without interference.
It is suitable for fixed installation in civil, commercial and industrial buildings.
Datasheet
• 2 x 0.22 mm² copper conductors
• Conductor resistance approximately 89 Ohm/km
• Flame-retardant PVC insulation
• Conductor color white and brown
• White flame-retardant PVC outer sheath
• Outer sheath diameter approximately 4.7 mm
• Mutual capacitance of the cable approximately 120 pF/m
• Insulation resistance ≥ 200 GΩ km (20 °C)
• Operating temperature -10 °C / +80 °C
• Test voltage 2.5 kVac
• CPR Fire reaction class Cca-s3,d1,a3
• Application in alarm systems, intrusion detection, smoke/fire detection
• Fixed installation (not as a power cable)
• Cohabitation permitted with 450/750 V and 0.6/1 kV power cables
