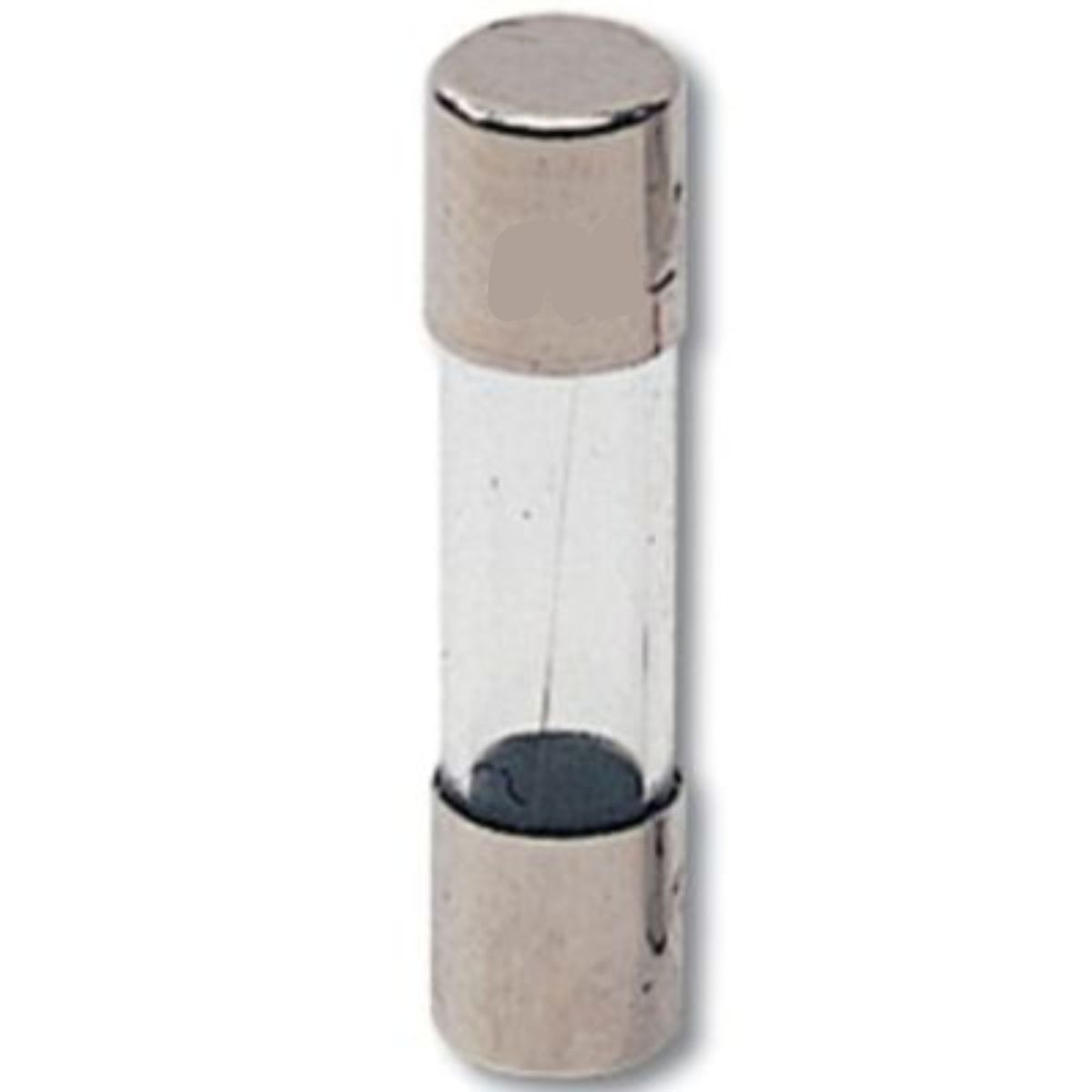

160 mA 250 V AC glass cylindrical fuse, fast (F curve), compact 5×20 mm, ideal for protecting small electronic circuits
Description
Miniature glass fuse from the Fusinorm series, designed to protect circuits with limited inrush currents, has a glass body with nickel-plated brass contacts and features a fast tripping characteristic (F), suitable for avoiding damage from current peaks.
The body features the logo, current, voltage, curve and approvals, the breaking capacity reaches approximately 35 A at 250 V AC, making it suitable for use on separate circuits in electronic devices or modules.
Datasheet
• Glass cylindrical fuse type
• Dimensions 5 × 20 mm
• Rated current 0.160 A (160 mA)
• Rated voltage 250 V AC
• Feature F (fast)
• Glass tube body
• Nickel-plated brass contacts
• Breaking capacity 35 A at 250 V AC
• Fusion indicator not present
Properties
Cerifications:
